PTB-60-1R018R0-4R5-22-115VAC-NFF
Active
Portable Amplifier
Quantic PMI Model PTB-60-1R018R0-4R5-22-115VAC-NFF is a portable amplifier that operates over the 1 to 18 GHz frequency range that offers a 20 dB of gain typically with a gain flatness of ±1.75 dB, a noise figure of 4.75 dB and minimum OP1dB of 21 dBm. This amplifier features an on/off switch that is located on the front panel and can operates on either 115 VAC voltage supply. Unit measures 4.92" x 4.92" x 2.10" with SMA female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 1 to 18 |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Gain (dB): | 60 dB Typ |
|---|
| Gain Flatness (dB): | ±1.75 dB Typ |
|---|
| Noise Figure (dB): | 4.75 dB Typ |
|---|
| OP1dB (dBm): | 21 dBm Typ |
|---|
| VSWR In/Out: | 2.0:1 Max |
|---|
| AC Voltage Supply: | 115 VAC |
|---|
| DC Voltage Supply: | N/A |
|---|
| RF Connectors (In/Out): | N-Type Female |
|---|

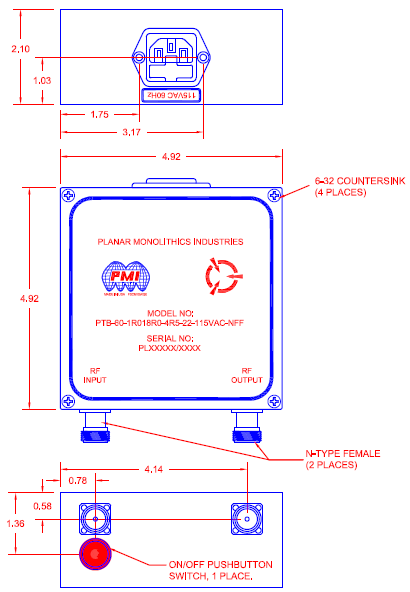

| Size: | 4.92" x 4.92" x 2.10" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -20 °C to +70 °C |
|---|
| Temperature (Non-Operating): | -55 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
