PTB-60-2040-5R0-10-220VAC-292FF *
Active
Portable Amplifier

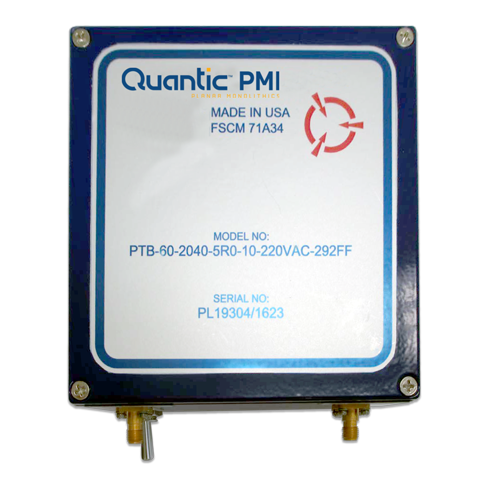

Quantic PMI Model PTB-60-2040-5R0-10-220VAC-292FF is a Portable Amplifier that operates over the 20 to 40 GHz frequency range that provides 60dB of typical gain with an OP1dB of 10 dBm minimum. Features include an On/Off switch that is located on the front panel, operates on 220 to 230 VAC and is supplied with a 6' long power cord. Unit measures 4.92" x 4.92" x 2.26" with 2.92mm female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 20 to 40 |
|---|
| Frequency Min (GHz): | 20 |
|---|
| Frequency Max (GHz): | 40 |
|---|
| Gain (dB): | 60 dB Typ |
|---|
| Gain (Measured): | 60 dB Typ - Measured 59.4 dB |
|---|
| Gain Flatness (dB): | ±3 dB Max |
|---|
| Gain Flatness (dB) - Measured: | ±3 dB Max - Measured ±2.6 dB |
|---|
| Noise Figure (dB): | 5 dB Typ |
|---|
| OP1dB (dBm): | 10 dBm Min |
|---|
| VSWR In/Out: | 2.0:1 Max - Measured 1.96:1/1.93:1 |
|---|
| AC Voltage Supply: | 220 to 230 VAC |
|---|
| DC Voltage Supply: | N/A |
|---|
| RF Connectors (In/Out): | 2.92mm Female |
|---|
| Size: | 4.92" x 4.92" x 2.26" |
|---|
| Finish: | Blue Powder Coated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -40 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
