PTH-DC22G-292FF Preliminary
PMI Model Number: PTH-DC22G-292FF is an RF feed-thru hermetic sealed package with working frequency range of DC to 22 GHz. This feed-thru is supplied in a housing that can be used as a surface mount or connectorized component.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |

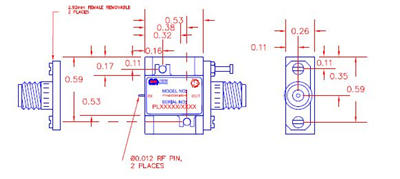

| Size: | 0.53" x 0.70" x 0.26" |
| Connectors: | 2.92mm Female |
| Isertion Loss: | 1 dB Max |
| VSWR Input/Output: | 1.5:1 Max |
| Export Classification (ECCN): | EAR99 |
