PTRAN-100M18G-70-MAH Active
Transceiver
Additional Documents
- Product Feature - PTRAN-100M18G-70-MAH

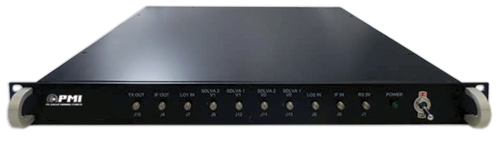

- Product Feature - PTRAN-100M18G-70-MAH Phase 1 Integration
- Test Report - PTRAN-100M18G-70-MAH
- Test Report - PTRAN-100M18G-70-MAH Phase 1 Integration
- PL14187 - Unit Data
- PL14189 - Unit Data
- Photos of Transceiver with Filter Banks
- Transceiver Isometric View
- Switch Filter Bank Plots

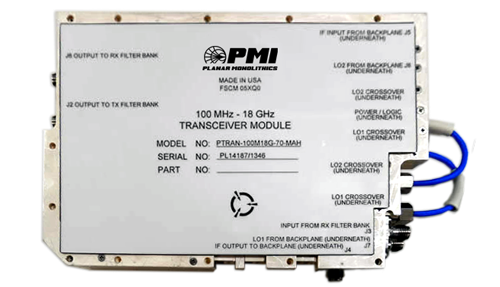

PMI Model PTRAN-100M18G-70-MAH is a transceiver covering the frequency range of 0.1 to 18 GHz. This unit up-converts a 0.1 to 4 GHz transmit signal to the 2 to 18 GHz frequency range. Down-converts a 0.1 to 18 GHz received signal to the 0.1 to 4 GHz intermediate frequency range for analog to digital conversion.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Product Description: | PMI Model PTRAN-100M18G-70-MAH is a transceiver covering the frequency range of 0.1 to 18 GHz. This unit up-converts a 0.1 to 4 GHz transmit signal to the 2 to 18 GHz frequency range. Down-converts a 0.1 to 18 GHz received signal to the 0.1 to 4 GHz intermediate frequency range for analog to digital conversion. |
| Item No.: | 29 |
| Export Classification (ECCN): | EAR99 |
