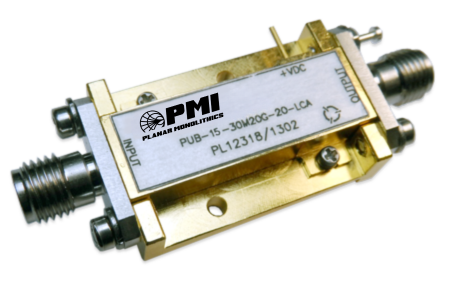

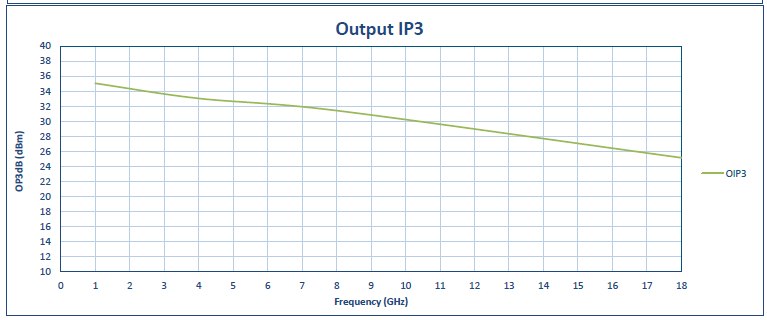

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Min: | 0.03 GHz |
|---|
| Frequency Max: | 20 GHz |
|---|
| Gain: | 15 dB |
|---|
| Gain (Measured): | 15 dB - Measured +13 dB |
|---|
| Gain Flatness (Measured): | ±2.5 dB - Measured 2.21 dB |
|---|
| Gain Flatness: | ±2.5 dB |
|---|
| Noise Figure: | 3.0 dB |
|---|
| Noise Figure (Measured): | 3.0 dB - Measured 4.9 dB Typ |
|---|
| Frequency Range: | 0.03 to 20 GHz |
|---|
| OP1dB: | 20 dBm - Measured 20 dBm |
|---|
| VSWR In/Out: | 2.0:1 - Measured 1.4:1 |
|---|
| DC Voltage Supply: | +12 to +15 VDC - Measured +12 to +15 VDC @ 188 mA |
|---|
| DC Current Draw: | 180 mA |
|---|
| Connectors: | SMA Female |
|---|
| Housing: | PE2 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -20 ºC to +70 ºC Operating
-55 ºC to +125 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
