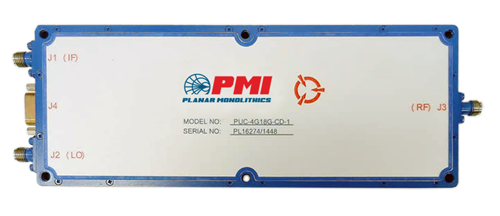

PUC-4G18G-CD-1 Active
Up/Down Converter
Additional Documents
Quantic PMI Model No. PUC-4G18G-CD-1 is an amplified Up/Down Converter for the frequency range of 4.0 to 18.0 GHz, with an IF range of 10 MHz to 100 MHz. It features a 32 dB programmable attenuator with 10-Bit resolution and an output amplifier to provide conversion gain. It also features an IF transfer switch to select the upper or lower sideband.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Product Description: | Quantic PMI Model No. PUC-4G18G-CD-1 is an amplified Up/Down Converter for the frequency range of 4.0 to 18.0 GHz, with an IF range of 10 MHz to 100 MHz. It features a 32 dB programmable attenuator with 10-Bit resolution and an output amplifier to provide conversion gain. It also features an IF transfer switch to select the upper or lower sideband. |
| Item No.: | 49 |
| Export Classification (ECCN): | EAR99 |
