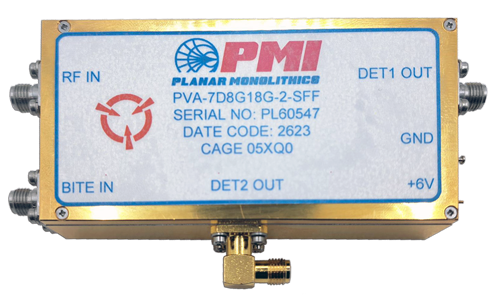

PVA-7D8G18G-2-SFF Active
Dual Diode Detector
Additional Documents
PMI Model PVA-7D8G18G-2-SFF is a broadband microwave integrated detector that is a high performance rf sub-assembly designed for accurate and reliable monitoring of microwave signal power in demanding applications. Operates over the frequency range of 7.8 to 18 GHz and has two video outputs with a dynamic range of 70 dBm and a TSS of at least 65 dBm, delivering a stable and repeatable detection across a broad dynamic range. Housing size is 3.54" x 0.98" x 0.78" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 7.8 to 18 |
| Frequency Min (GHz): | 7.8 |
| Frequency Max (GHz): | 18 |
| RF Input VSWR: | 2.5:1 Max |
| Tangential Sensitivity: | -65 dBm Max |
| Input Power: | 1 kW Peak Max (1 µs PW, 0.3% DC) 3 W Average Max |
| Impedance: | 100 Ohm Load |
| Flatness: | ±2 dB Max (DET1) ±1.5 dB Max (DET2) |
| Rise/Fall Time: | 20 ns Max |
| Bias: | +6 ± 0.5 VDC @ 700 mA Max |
| Connectors In/Out: | SMA Female |
| Size: | 3.54" x 0.98" x 0.78" |
| Finish: | Gold Plated |
| Weight: | 250 g Max |
| Recovery Time: | 400 ns Max |
| Environmental Ratings: | |
| Operating Temperature: | -20 °C to +85 °C |
| Non-Operating Temperature: | -30 °C to +95 °C |
| Humidity: | 95% Relative Humidity @ +45 °C |
| Shock: | 20G @ 11ms |
| Vibration: | 5mm p-p @ 2 to 5 Hz 1.5mm p-p @ 5 to 10 Hz 0.3mm p-p @ 10 to 25 Hz In All XYZ Axes, 2 hours per Axis |
