| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 14 to 18 |
|---|
| Output Power: | 10 mW Min, 50 mW Max |
|---|
| Harmonics: | -15 dBc Min |
|---|
| Spurious: | -45 dBc Min |
|---|
| Output Power Variation vs. Frequency: | 6 dB Max |
|---|
| Output Power Variation vs. Temperature: | ±1 dB Max |
|---|
| Frequency Drift: | 55 MHz Max Over Operating Temperature |
|---|
| Pulling: | ±0.25% Max Into 1.5:1 VSWR |
|---|
| Pushing: | ±0.2% / Volt Max |
|---|
| Residual FM: | 350 kHz PK-PK Max |
|---|
| Tuning Voltage Range: | 0 To +10 VDC, 1 kO Min Input Impedance |
|---|
| Slope Linearity: | 3:1 Max |
|---|
| Tuning Linearity: | ±0.5% Max |
|---|
| Modulation Response Bandwidth: | 5 MHz Max |
|---|
| Post Tuning Drift: | 100 kHz Min (Full Bandwidth Deviation) |
|---|
| Heater Control: | True Proportionally Control |
|---|
| Warm-Up Time: | 8 Minutes Max From -30 °C |
|---|
| DC Supplies: | +15 VDC ± 5% @ 1.2 Amps Max -15 VDC ± 5% @ 0.1 Amps Max +65 VDC ± 5% @ 0.025 Amps Max 115 VAC ± 5% @ 50 To 400 Hz 1.5 Amps Max (Turn-on) 0.8 Amps Max (Steady-State @ -30 °C) |
|---|
| RF Output & Tuning Connectors: | SMA Female |
|---|
| Power Connection: | RFI Solder Terminals |
|---|

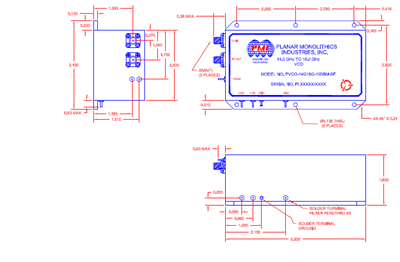

| Size: | 5.0" x 3.15" x 1.80" |
|---|
| Finish: | Epoxy Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 ºC to +85 ºC Operating -65 ºC to +125 ºC Non-Operating |
|---|
| Shock: | 15G. 11 ± 1 ms |
|---|
| Vibration: | 0.1 Inch PK-PK or 10 G (5 To 500 Hz) MIL-E-5400R FIG. 2 (Sheet 1 of 3 - Curve 4) |
|---|
| Relative Humidity: | 100% |
|---|
