PVVAN-0R4G6G-40-MP-1 * Active

Voltage-Controlled Pin Diode Attenuator

Buy Now
PVVAN-0R4G6G-40-MP-1 *
Product Feature

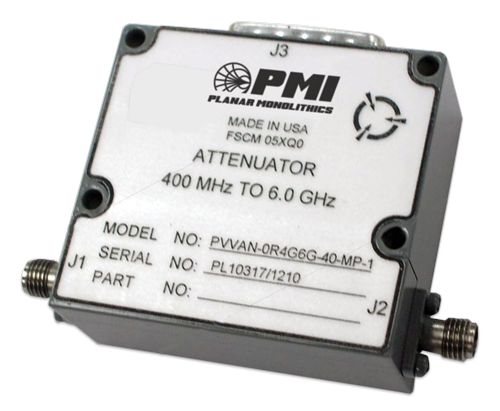

PMI Model PVVAN-0R4G6G-40-MP-1 is a non-reflective, linearized, voltage-controlled pin diode attenuator. This model operates over the 400 MHz to 6 GHz frequency range and provides up to 40 dB of attenuation range from a 0 to +10 VDC control voltage. insertion loss is 2.8 dB with a Typical speed of 5 µs.  Operating power levels are up to 23 dBm CW which is the input P1dB. This attenuator is supplied in a small housing measuring only 2.0" x 1.81" x 0.88" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.4 to 6 GHz
Frequency Min (GHz): 0.4
Frequency Max (GHz): 6
Insertion Loss (dB): 2.8 dB
Insertion Loss (dB) - Measured: 2.8 dB Typ, 4 dB Max - Measured 2.7 dB
Attenuation (dB): 40 dB
Control Type: Voltage
Attenuation Control: 0 to +10 VDC (Linearized)
Switching Speed: 5 µs Typ, 10 µs Max - Measured 5 µs
VSWR: 2.0:1 Max - Measured 1.4:1
Power Supply: +12 VDC @ 70 mA Typ - Measured 68 mA,
-12V @ 40 mA Typ - Measured 36 mA
Operating Input Power: 23 dBm CW (Typ P1dB)
RF Connectors: SMA Female
DC Connector: 15 Pin D- Male - Mating Connector Supplied
Size: 2.0" x 1.81" x 0.88"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -50 ºC to +100 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
