QC-17G21G-SFF-30W Preliminary
90° Hybrid Coupler

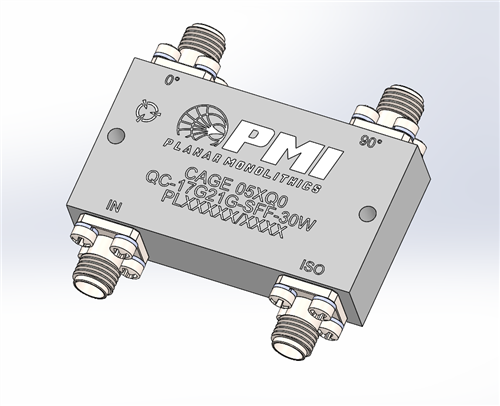

PMI Model QC-17G21G-SFF-30W is a 17.7 to 21.2 GHz 90° Hybrid coupler with a maximum isolation of 17 dB and a maximum insertion loss of 1.2 dB. This model is designed with an amplitude balance of ±0.5 dB and a phase balance of ±5°. The package size is 1.80" X 1.00" X 0.43" with SMA Female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 17.7 to 21.2 GHz |
| Frequency Min (GHz): | 17.7 |
| Frequency Max (GHz): | 21.2 |
| Amplitude Balance (dB): | ± 0.5 dB Max |
| Phase Balance (°): | ± 5° Max |
| Insertion Loss (dB): | 1.2 dB Max |
| Isolation (dB): | 17 dB Min |
| Power Handling: | 30 W Avg., 1 kW Peak |
| VSWR: | 1.50:1 Max |
| Nominal Split: | 3.01 dB |
| Impedance: | 50 |
| Connectors (In/Out): | 4X SMA Female |
| Size: | 1.80" x 1.00" x 0.43" |
| Finish: | Clear Chem Coated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55º C to +85º C |
| Non-Operating Temperature: | -65º C to +25º C |
| Humidity: | 95%, Non-Condensing |
| Shock: | MIL-STD-202, METHOD 213 COND. B |
| Vibration: | MIL-STD-202, METHOD 204 COND. B |
| Altitude: | MIL-STD-202, METHOD 105 COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107 COND. A |
