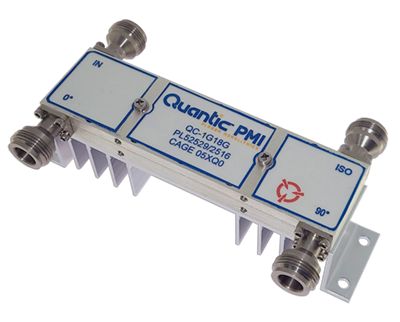

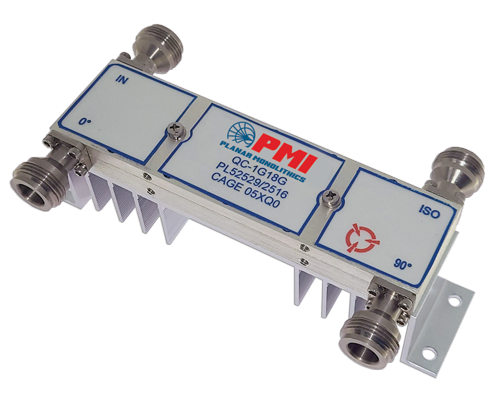

QC-1G18G Active
Quadrature Hybrid Coupler
PMI Model QC-1G18G is a quadrature hybrid coupler that operates over the frequency range of 1 to 18 GHz which provides low loss of 2 dB and an isolation of 16 dB minimum. The VSWR is 1.6:1 maximum with an amplitude balance of ±0.9 dB maximum and the phase balance is ±8° maximum. This coupler housing measures 5.67" x 1.60" x 1.25" and is outfitted with N-type female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 1 to 18 GHz |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 18 |
| Amplitude Balance (dB): | ±0.9 dB Max |
| Phase Balance (°): | ±8° Max |
| Insertion Loss (dB): | 2 dB Max |
| Isolation (dB): | 16 dB Min |
| RF Input Power Handling: | 300 W CW Max 3 kW Peak Max |
| VSWR: | 1.6:1 Max |
| Coupling: | 3 dB |
| Connectors (In/Out): | N Type Female |
| Size: | 5.67" x 1.60" x 1.25" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -45 ºC to +75 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
