QC-2040 Preliminary

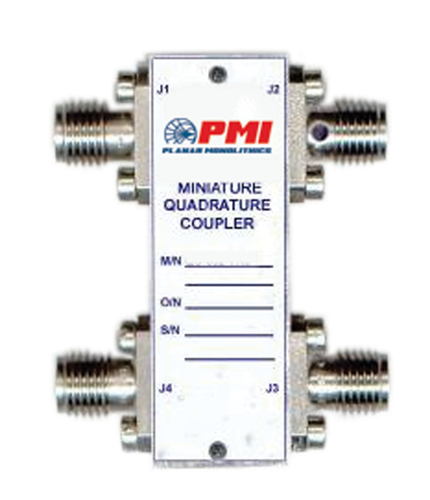

QC-2040
Product Feature

PMI's 3dB, 90 Degree Quadrature Couplers are available in bandwidths of 2.0 to 4.0GHz, 2.5 to 5.0GHz, 4.0 to 8.0GHz, 5.0 to 10.0GHz, 6.0 to 12.0GHz and 8.0 to 18.0GHz. They are designed for low insertion loss, low VSWR, excellent phase and amplitude balance. These are packaged in a small size.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 2 to 4 GHz
Frequency Min (GHz): 2
Frequency Max (GHz): 4
Amplitude Balance (dB): ±0.5 max
Phase Balance (°): 90 ± 2
Insertion Loss (dB): 0.3dB Maximum
Isolation (dB): 20
RF Input Power Handling: 75 Watts CW
VSWR: 1.3:1 Typ
Size: 0.8" x 1.2" x 0.22"
Weight: 1.0 Ounces Typical
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40ºC to +71 ºC
Non-Operating Temperature: -65 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
