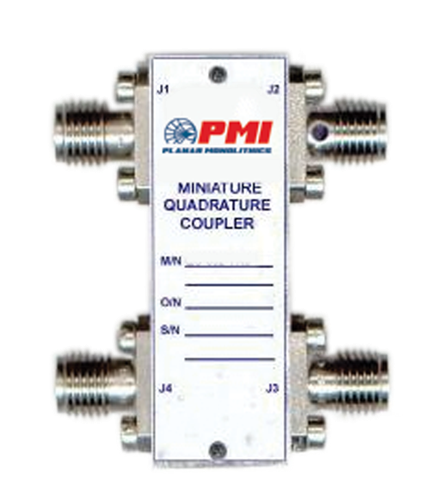

QC-8018 Preliminary
3 dB, 90° Quadrature Couplers
PMI's 3 dB, 90° Quadrature Couplers are available in bandwidths of 2.0 to 4.0 GHz, 2.5 to 5.0 GHz, 4.0 to 8.0 GHz, 5.0 to 10.0 GHz, 6.0 to 12.0 GHz and 8.0 to 18.0 GHz. They are designed for low insertion loss, low VSWR, excellent phase and amplitude balance. These are packaged in a small size.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 8 to 18 GHz |
| Frequency Min (GHz): | 8 |
| Frequency Max (GHz): | 18 |
| Amplitude Balance (dB): | ±0.75 Max |
| Phase Balance (°): | 90 ± 5.0 |
| Insertion Loss (dB): | 1.5 dB Max |
| Isolation (dB): | 14 |
| RF Input Power Handling: | 50 Watts CW |
| VSWR: | 1.5:1 Typ |
| Size: | 0.8" x 1.2" x 0.22" |
| Weight: | 1.0 Oz Typ |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +71 ºC |
| Non-Operating Temperature: | -65 ºC to +100 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
