QSM-020-15-4-23-SFF Active
Low Noise Amplifier
Additional Documents

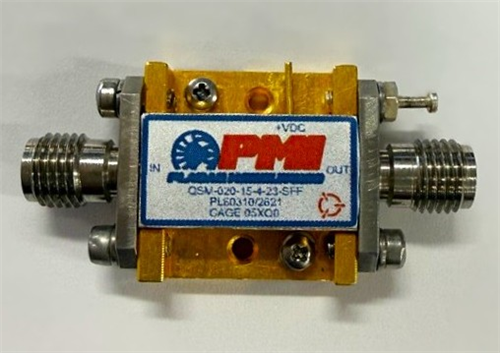

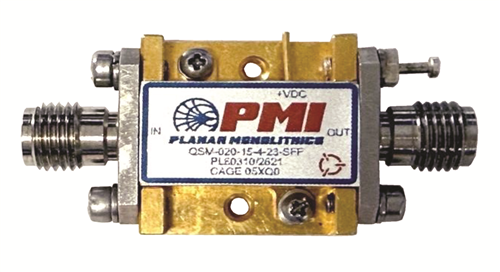

PMI Model QSM-020-15-4-23-SFF is a 0.5 to 18 GHz low noise amplifier featuring 16 dB typical gain, 18 dBm minimum OP1dB, and 24 dBm maximum input power. Housing measures 0.7" x 0.68" x 0.26" with removable SMA female connector that can be used as a connectorized or surface mount component.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Gain (dB): | 16 dB Typ, 14 dB Min |
| Gain Flatness: | ±2 dB Max |
| Noise Figure (dB): | 6 dB Max @ ≥2 GHz, 10 dB Max <2 GHz |
| OP1dB (dBm): | 22 dBm Typ, 18 dBm Min |
| Psat (dBm): | 26 dBm Typ, 24 dBm Min |
| VSWR In/Out: | 2.0:1 Max |
| DC Voltage (VDC): | +12 to +15 VDC |
| DC Current (mA): | No RF: 200 mA Max Idq, @Psat 350 mA Max |
| Maximum Input Power: | 24 dBm CW Max |
| OIP3: | 25 dBm Min |
| Harmonics: | -23 dBc Min @-5 dBm Input Power, -10 dBc Min @7.5 dBm Input Power, -9 dBc Min @20 dBm Input Power |
| Connectors: | SMA Female - removable |
| Size: | 0.7" x 0.68" x 0.26" |
| Finish: | Gold Plated |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ℃ to +85 ℃ |
| Temperature (Storage): | -55 ℃ to +100 ℃ |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
