QSM-06-15R5-5-19-SFF Active
Low Noise Amplifier
Additional Documents

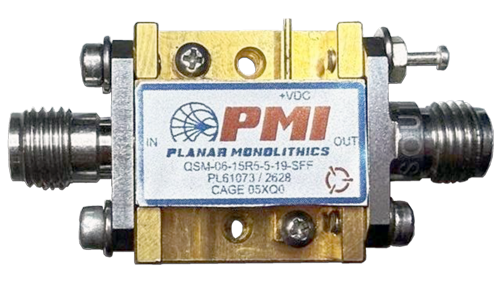

PMI Model QSM-06-15R5-5-19-SFF is a 0.05 to 6 GHz low noise amplifier with 16 dB gain and 10 dBm minimum OP1dB. Supplied in our standard PEAFS3 housing measuring 0.7" x 0.52" x 0.26" with removable SMA female connectors that can be used as a connectorized or surface mount component.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.05 to 6 |
| Frequency Min (GHz): | 0.05 |
| Frequency Max (GHz): | 6 |
| Gain (dB): | 16 Typ 13 Min |
| Gain Flatness: | ±2 dB Max |
| Noise Figure (dB): | 7 Max |
| OP1dB (dBm): | 10 Min |
| Psat (dBm): | 20 Typ 19 Min |
| VSWR In/Out: | 2.0:1 Max |
| DC Voltage (VDC): | +12 to +15 VDC |
| DC Current (mA): | 200 Max (Idq) 300 Max (Psat) |
| Maximum Input Power: | 24 dBm CW Max |
| OIP3: | 18 dBm Min |
| Harmonics: | -29 dBc Min @ -10 dBm Input Power -13 dBc Min @ +5 dBm Input Power -5 dBc Min @ +20 dBm Input Power |
| Connectors: | SMA Female |
| Size: | 0.7" x 0.52" x 0.26" |
| Finish: | Gold Plated |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ℃ to +85 ℃ |
| Temperature (Storage): | -55 ℃ to +85 ℃ |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
