QSM-218-13-5-23-SFF Active
Low Noise Amplifier
Additional Documents

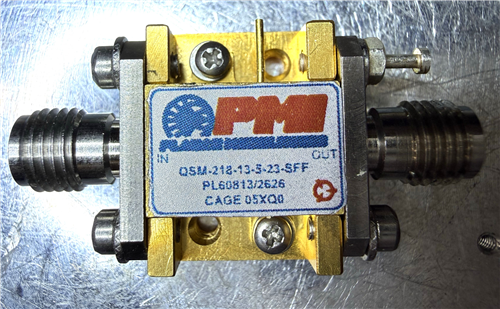

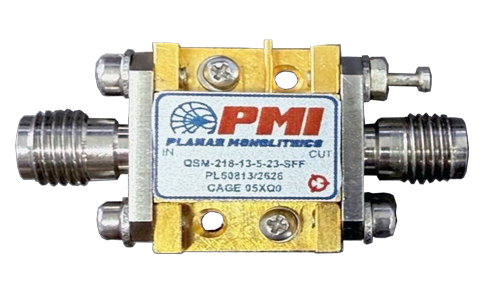

PMI Model QSM-218-13-5-23-SFF is a 2 to 18 GHz low noise amplifier with 12 dB gain and 23 dBm OP1dB. This amplifier is supplied in our standard PEAFS3 housing measuring 0.7" x 0.52" x 0.26" with removable SMA female connectors that can be used as a connectorized or surface mount component.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Gain (dB): | 13 Typ 12 Min |
| Gain Flatness: | ±1 dB Max |
| Noise Figure (dB): | 5 Max ≥ 6 GHz 9 Max < 6 GHz |
| OP1dB (dBm): | 26 Typ 23 Min |
| Psat (dBm): | 27 Typ 24 Min |
| VSWR In/Out: | 2.0:1 Max |
| DC Voltage (VDC): | +12 to +15 VDC |
| DC Current (mA): | 300 Max (Idq) 350 Max (Psat) |
| Maximum Input Power: | +25 dBm CW Max |
| OIP3: | +30 dBm Min |
| Harmonics: | -30 dBc Min @ -5 dBm Input Power-15 dBc Min @ +7.5 dBm Input Power-9 dBc Min @ +20 dBm Input Power |
| Connectors: | SMA Female |
| Size: | 0.7" x 0.52" x 0.26" |
| Finish: | Gold Plated |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ℃ to +85 ℃ |
| Temperature (Storage): | -55 ℃ to +100 ℃ |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
