QSM-EQL-DC18-2R5-0R1P-SFF
Gain Equalizer
Additional Documents

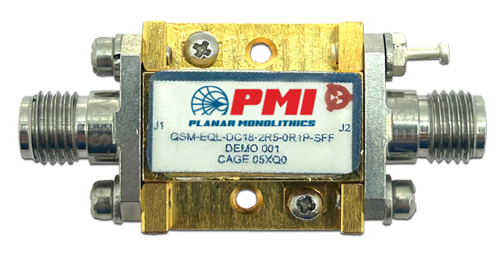

PMI Model QSM-EQL-DC18-2R5-0R1P-SFF is a DC to 18 GHz RF equalizer with 0.4 dB/GHz nominal slope and 1.5 dB maximum insertion loss at 6 GHz that is rated for 30 dBm RF input power, 2.0:1 maximum VSWR, and operates from -40 to +85 °C. Supplied in a gold-plated PEAFS3 housing measuring 0.68" x 0.7" x 0.29" with removable SMA female connectors that can be used as a connectorized or surface mount component.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | DC to 18 |
| Frequency Min (GHz): | DC |
| Frequency Max (GHz): | 18 |
| Input Power Max: | 30 dBm |
| VSWR: | 2.0:1 Max |
| Insertion Loss (dB): | 1 dB Max, 0.75 dB Typ |
| Slope: | 0.1 dB/GHz Nom |
| Linearity: | ±0.5 dB Max |
| Connectors In / Out: | SMA Female |
| Size: | 0.68" x 0.7" x 0.29" |
| Finish: | Gold Plated |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 240 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
