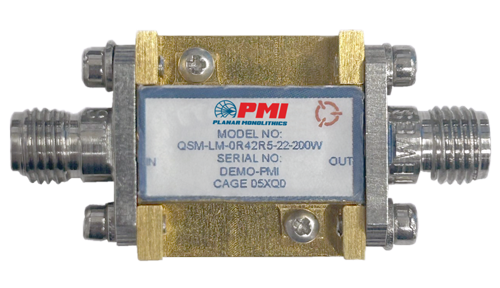

QSM-LM-0R42R5-22-200W Active
Limiter
Additional Documents
PMI Model QSM-LM-0R42R5-22-200W is a 0.4 to 2.5 GHz limiter with 0.6 dB insertion loss and a P1dB of 7 dBm. This limiter is supplied with removable SMA (F) connectors and a housing measuring 0.70" x 0.69" x 0.31"that can be used as a connectorized or a surface mount component.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.4 to 2.5 |
| Frequency Min (GHz): | 0.4 |
| Frequency Max (GHz): | 2.5 |
| Insertion Loss (dB): | 0.6 dB Max |
| Input/Output VSWR: | 1.2:1 dB Max |
| Input Power: | 40 dBm CW Max |
| Spike Leakage: | 0.5 ergs Max |
| RF Leakage (dBm): | 22 dB Max (Flat) |
| Recovery Time: | 1 dB Insertion Loss within 1000 ns of 50% of the falling edge of RF pulse |
| P1dB Limiting Threshold (dBm): | 7 dBm Min |
| Peak Input Power: | 100 kHz to 0.4 GHz: 42 dBm (PW 23 µs / DC 0.5%) 0.4 to 4 GHz: 53 dBm (PW 130 µs / DC 3.5%) 4 to 40 GHz: 45 dBm (PW 2.6 µs / DC 1.0%) |
| Connectors In/Out: | SMA Female (Removable) |
| Size: | 0.70" x 0.69" x 0.31" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -54 ˚C to +85 ˚C |
| Non-Operating Temperature: | -54 ˚C to +85 ˚C |
