| General Parameters: |
|---|
| Status: | Active |
|---|

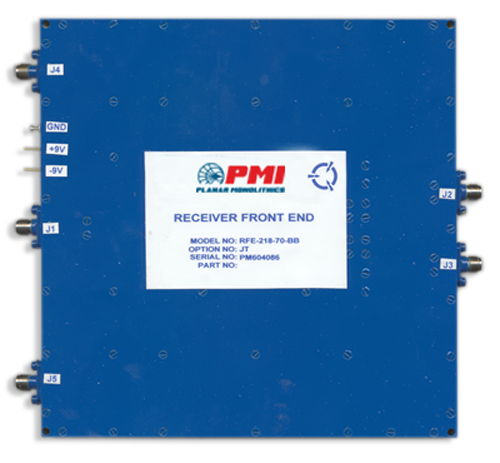

| Product Description: | Quantic PMI Model RFE-218-70-BB Option JT is a 2 to 18 GHz, High Sensitivity, High Dynamic Range, Direction Finding (DF) Receiver Front End consisting of 3 Power Dividers, 6 Limiters, 1 Low-Noise 15 dB Gain Amplifier, and 2 AMC 70 dB Extended Dynamic Range Detector Log Video Amplifiers (ERDLVA) integrated in a Miniature Assembly. |
|---|
| Item No.: | 90 |
|---|
| Frequency Range: | 2.0 to 18.0 GHz ( (J1, J2, J3) |
|---|
| Frequency Min: | 2.0 GHz (J1, J2, J3) |
|---|
| Frequency Max: | 18.0 GHz (J1, J2, J3) |
|---|
| Output Signal Rise/Fall Time: | 30 ns / 350 ns Max (J4, J5) |
|---|
| Log Slope: | 50 mV/dB (±10) |
|---|
| Load Impedance: | Video: 93 Ohms (recommended) |
|---|
| Frequency Flatness: | ±3.0 dB Max |
|---|
| VSWR: | 3.0:1 (J2, J3) |
|---|
| Tangential Sensitivity: | -63 dBm Min |
|---|
| LOG Linearity: | ±2.25 dB Max (J4, J5) |
|---|
| Dynamic Range: | -60 to +5 dBm Min (J4, J5) |
|---|
| Power Supply: | +9 VDC to +12 VDC @ 850 mA Max
-9 VDC to -12 VDC 300 mA Max |
|---|
| Connector: | SMA (F) |
|---|
| Size: | 6.0" x 6.0" x 0.5" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 °C to +85 °C (Operating)
-65 °C to +85 °C (Storage) |
|---|
| Humidity: | MIL_STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL_STD-202F, Method 213B Cond. B |
|---|
| Altitude: | MIL_STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL_STD-202F, Method 107D Cond. A |
|---|
| Vibration: | MIL_STD-202F, Method 204D Cond. B |
|---|
