RPD-DC40G-292FF Preliminary
2 Way Power Divider

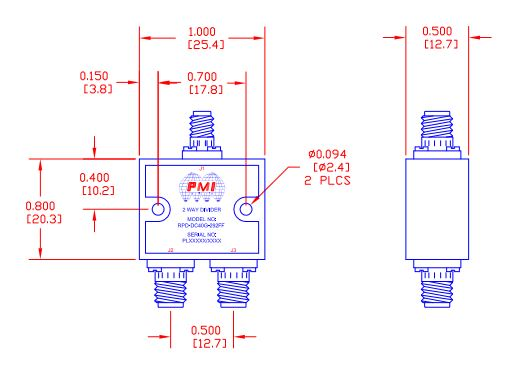

Quantic PMI Model RPD-DC40G-292FF is a 2 Way Resistive Divider operating between DC to 40 GHz that offers 10 dB minimum isolation while maintaining a typical insertion loss of 6 dB, a maximum phase balance of 8°, and a maximum amplitude balance of 0.8 dB. Housing measures 1.0" x 0.8" x 0.5" and is outfitted with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 2 Way |
| Frequency Range (GHz): | DC to 40 |
| Frequency Min (GHz): | DC |
| Frequency Max (GHz): | 40 |
| Isolation (dB): | 10 dB Min |
| Insertion Loss (dB): | 9 dB Max, 6 dB Typ |
| VSWR (In/Out): | 1.5:1 Max |
| Amplitude Balance: | 0.8 dB Max, 0.5 Typ |
| Phase Balance: | ±8° Max, ±5° Typ |
| Power Handling: | 5 W Max (Forward) 0.5 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | 2.92mm Female |
| Size: | 1.0" x 0.8" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -45 ºC to +85 ºC |
