RPD-DC6G-SFF Preliminary

2 Way Power Divider

RPD-DC6G-SFF
Product Feature

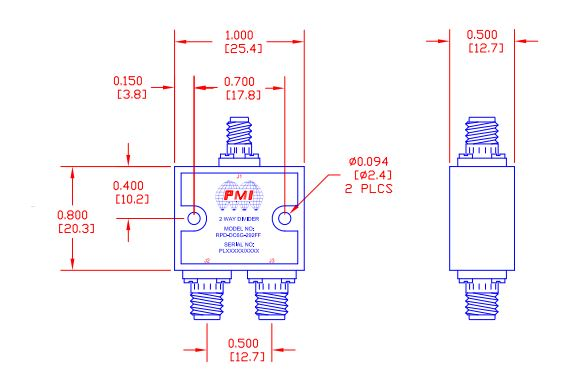

Quantic PMI Model RPD-DC6G-SFF is a 2 Way Resistive Divider operating between DC to 6 GHz that offers 12 dB minimum isolation while maintaining a typical insertion loss of 6 dB, a maximum phase balance of 3°, and a maximum amplitude balance of 0.3 dB. Housing measures 1.0" x 0.8" 0.5" and is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Type: 2 Way
Frequency Range (GHz): DC to 6
Frequency Min (GHz): DC
Frequency Max (GHz): 6
Isolation (dB): 12 dB Min
Insertion Loss (dB): 7 dB Max, 6 dB Typ
VSWR (In/Out): 1.25:1 Max
Amplitude Balance: 0.3 dB Max, 0.15 Typ
Phase Balance: ±3° Max, ±2° Typ
Power Handling: 5 W Max (Forward)
0.5 W Max (Reverse)
Impedance: 50 Ohm
Connectors: SMA Female
Size: 1.0" x 0.8" 0.5"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -45 ºC to +85 ºC
