RSM-618-65 Active
Receiver Front-End IFM Subsystem
Additional Documents

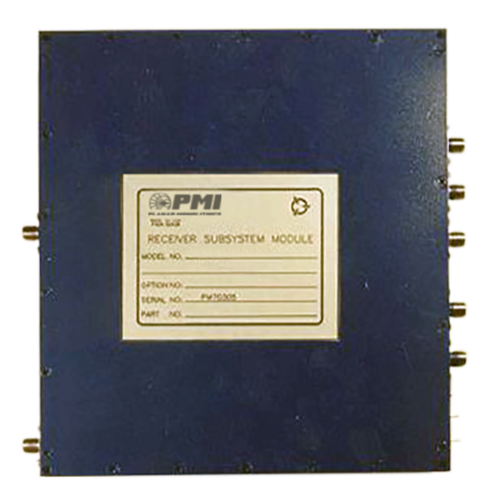

PMI Model RSM-618-65 is a Receiver Front-End IFM Subsystem with 6 to 18 GHz DC-Coupled Log Video Amplifier Outputs and Three DC-Coupled Frequency Discriminator Video Outputs (6 to 10 GHz, 10 to 14 GHz, and 14 to 18 GHz). Housing size is 5.5" x 6.0" x 1.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Product Description: | PMI Model RSM-618-65 is a Receiver Front-End IFM Subsystem with 6 to 18 GHz DC-Coupled Log Video Amplifier Outputs and Three DC-Coupled Frequency Discriminator Video Outputs (6 to 10 GHz, 10 to 14 GHz, and 14 to 18 GHz). Housing size is 5.5" x 6.0" x 1.5" with SMA female connectors. |
| Item No.: | 6 |
| RF Input Power Level: | 15 dBm |
| Frequency Range: | 6 to 18 GHz |
| RF Input VSWR: | 3.0:1 Max @ -20 dBm, 2.5:1 Typ |
| Pulsewidth: | 100 ns Min (-65 to 0 dBm) |
| RF Output Power: | 15 dBm |
| Frequency Discriminator: | 3 Outputs: 6 to 10 GHz, 10 to 14 GHz, 14 to 18 GHz Accuracy: ±0.3 GHz Max, ±0.2 GHz Typ Slope: 50 mV/GHz (±10% Max) |
| Tangential Sensitivity: | -68 dBm Max |
| LOG Linearity: | ±2.5 dB Max |
| LOG Video Output: | Rise Time: 25 ns Max Slope: 50 mV/dB (±10% Max) |
| Dynamic Range: | -65 to 0 dBm |
| DC Power: | +15 VDC @ <950 mA (850 mA Typ) -15 VDC @ <450 mA (275 mA Typ) |
| Connectors: | SMA Female |
| Size: | 5.50" x 6.00" x 1.50" |
| Export Classification (ECCN): | EAR99 |
