| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 1 to 18 |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Attenuation Range (dB): | 40 ± 2.75 dB |
|---|
| Insertion Loss (dB): | 3 dB Max |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Operating Input Power: | 20 dBm CW Max |
|---|
| Power Supply: | +5 VDC @ 300 mA,
-5 VDC @ 300 mA |
|---|
| TTL Control: | TTL 0 = Insertion Loss,
TTL 1 = 40 dB Attenuation |
|---|
| Digital Control: | Single BIT |
|---|
| Connectors: | SMA Female - removable |
|---|

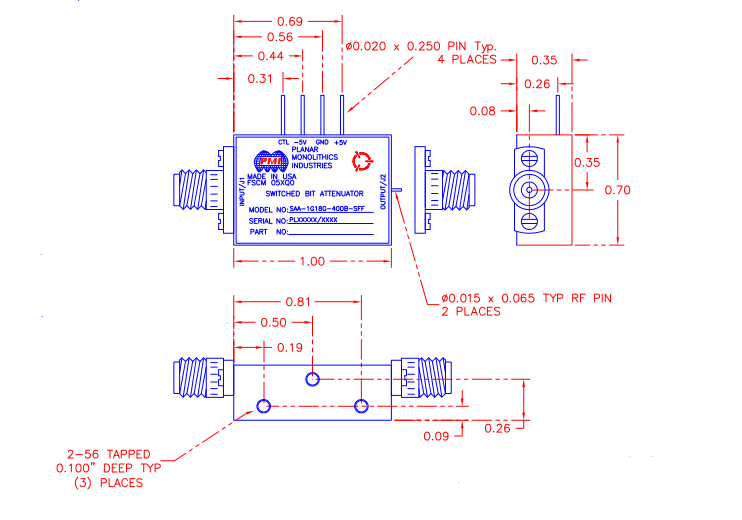

| Size: | 1.0" x 0.7" x 0.35 |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -20 ºC to +70 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
