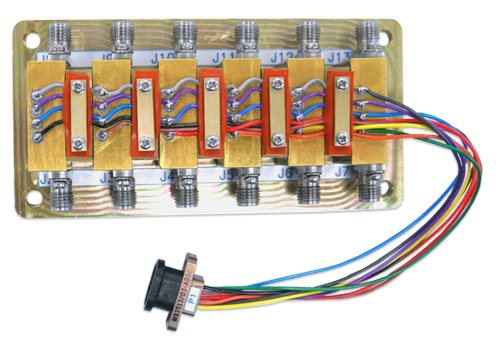

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Attenuation Range (dB): | 20 dB |
|---|
| Attenuation Flatness (dB): | +1 / - 2 dB @ 1 to 4 dB (Low Loss State),
±2 dB @ 18 to 22 dB (High Loss State) |
|---|
| Insertion Loss (dB): | 1 dB Min to 4 dB Max (Low Loss Path),
18 dB Min to 22 dB Max (High Loss Path) |
|---|
| VSWR: | 2.0:1 Max - Measured 1.9:1 |
|---|
| Power Supply: | +5 ± 0.1 VDC @ 300 mA
-5 ± 0.1 VDC @ 300 mA |
|---|
| Logic Input: | Logic "0" (BIT OFF) = -0.3 to +0.8 V
Logic "1" (BIT ON) = +2 to +5 V |
|---|
| Digital Control: | 6 Bit |
|---|
| DC Connector: | 9 Pin Micro D Plug (M83513-03A03C) |
|---|
| Connectors: | SMA Female - removable |
|---|
| Size: | 1.959" x 40" x 0.81" |
|---|
| Finish: | Plate & Wire Par - Chemical Film: Yellow Color Class 3 Per MIL-C-5541, Hard Epoxy Sealed |
|---|
| Weight: | 1 lbs Max |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
