SAA-218-6-093-013542 OPT. HERM Active
Six Switched BIT Attenuator Array
Buy Now
Additional Documents
- Product Feature
- Test Report - 3/30/06
- Test Report - 9/1/15
- Press Release
- Flyer
- PL17408 - Unit Data
- PL17564 - Unit Data
- PL17565 - Unit Data
- PL17770 - Unit Data
- PL20161 - Unit Data
- PL20162 - Unit Data
- PL20163 - Unit Data
- PL33724 - Unit Data
- PL34081 - Unit Data
- PL38469 - Unit Data
- PL38528 - Unit Data
- PL38549 - Unit Data
- PL38550 - Unit Data
- PL38551 - Unit Data
- PL39059 - Unit Data
- PL39421 - Unit Data
- PL43114 - Unit Data
- PL44320 - Unit Data

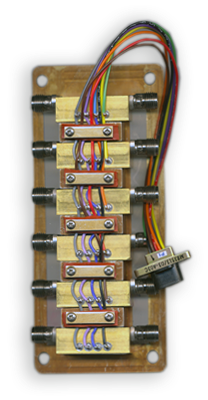

Quantic PMI Model SAA-218-6-093-013542 is an Array of Six Switched BIT Attenuators operating from 2 to 18 GHz. This Assembly provides Switchable RF Attenuation for Six Signal Paths. The settings will be selected by Six Digital Control BIT. Hermetically Sealed Unit. Package size is 4.0" x 1.959" x 0.81".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Attenuation Range (dB): | 20 dB |
| Insertion Loss (dB): | 1 dB Min to 4 dB Max (Low Loss Path), 18 dB Min to 22 dB Max (High Loss Path) |
| VSWR: | 2.0:1 Max - Measured 1.9:1 |
| Input Power: | 24 dBm Max |
| Digital Control: | 6 BIT |
| DC Connector: | 9 Pin Micro D Plug (M83513-03A03C) |
| Connectors: | SMA Female - removable |
| Size: | 4.0" x 1.959" x 0.81". |
| Finish: | Plate & Wire Par - Chemical Film :Yellow Color Class 3 Per MIL-C-5541 Hermetically Sealed |
| Weight: | 1 lbs Max |
| Export Classification (ECCN): | EAR99 |
