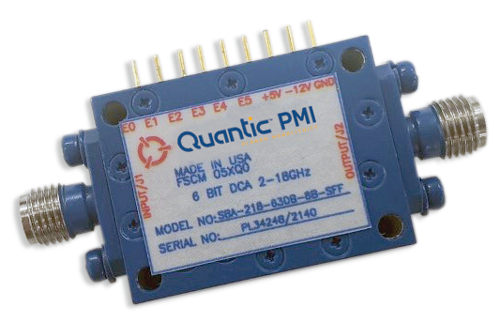

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 2 to 18 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Attenuation Range (dB): | 0 to 63 dB (Over IL) |
|---|
| Insertion Loss (dB): | 7 dB Max (2 to 8 GHz),
8.5 dB Max (8 to 12 GHz),
9.5 dB Max (12 to 16 GHz),
10.5 dB Max (16 to 18 GHz) |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Switching Speed: | 80 ns Max |
|---|
| Input Power: | 25 dBm CW Min |
|---|
| Nominal Attenuation Res: | 1 dB |
|---|
| Actual Attenuation Res: | 1 ± 0.2 dB goal |
|---|
| Ripple and Slope: | 2 dB Typ (0 to 31 dB) - 2 to 18 GHz, Over Temp
4 dB Typ (31 to 63 dB) - 2 to 18 GHz, Over Temp
0.6 dB Typ (0 to 31 dB) - Over any 1 GHz, Over Temp
1.2 dB Typ (31 to 63 dB) - Over any 1 GHz, Over |
|---|
| Harmonics: | -38 dBc Max @ 18 dBm Input
-40 dBc Max @ 15 dBm Input
-45 dBc Max @ 12 dBm Input |
|---|
| Switching Rate: | 1 MHz Min |
|---|

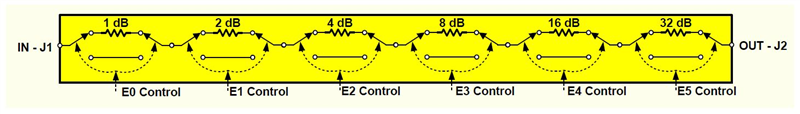

| TTL Control: | 6 BIT
"1 = Insertion Loss"
"0 = Attenuation" |
|---|
| Symmetry: | Bi-Directional |
|---|
| Video Leakage: | -55 dBm Max, 1 to 18 GHz (Measured with Spectrum Analyzer set to RF Video BW Resolution: 3 MHz) |
|---|
| DC Voltage: | +5 VDC ± 5% @ 200 mA Max
-12 VDC ± 5% @ 300 mA Max |
|---|
| Digital Control: | 6 BIT |
|---|
| Connectors: | SMA Female per MIL-C-39012 - removable |
|---|
| Size: | 1.15" x 0.85" x 0.50" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | 0 °C to +71 °C |
|---|
| Non-Operating Temperature: | -20 °C to +85 °C |
|---|
| Humidity: | MIL-STD-8100, METHOD 507.2, PRIII, AGGREVATED RH95%+/-5% |
|---|
| Shock: | MIL-STD-8100, METHOD 516.3 HALF SINE 20G, 11ms |
|---|
| Vibration: | MIL-STD-202F, METHOD 2140, TC E, FIGURE 214-1, 3 HRS EA AXIS |
|---|
| Altitude: | 40, 000FT, NON-OPERATING |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 1070 COND. A |
|---|
| Fungus: | MIL-STD-8100, METHOD 508 IAW MIL-HDBK-454, GUIDELINE 4 |
|---|
| SALT FOG AND SPRAY: | MIL-STD-8100, METHOD 509.2 (5% NaCl FOR 48 HOURS) |
|---|
