SBA-500M18G-31D5-6B-SFF
Active
Switched BIT Attenuator

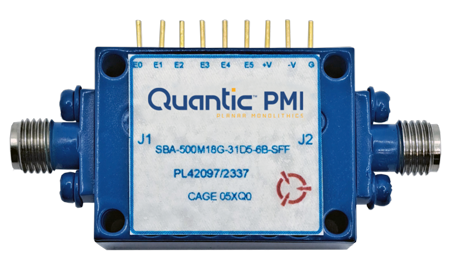

Quantic PMI Model SBA-500M18G-31D5-6B-SFF is a switched bit attenuator operating from 0.5 to 18 GHz designed to be switched between a low insertion loss state and 31.5 dB in 0.5 dB steps. The settings are selected by 6 independent bit controls. Specifications include insertion loss of 6 dB maximum; VSWR 2:1; 100 ns switching speed and maximum RF input power of 20 dBm. Model has SMA female connectors and housing size is 1.15" x 0.85" x 0.50".
Product Specifications
| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.5 to 18 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Attenuation Range (dB): | 0 to 31.5 dB |
|---|
| Insertion Loss (dB): | 6 dB Max |
|---|
| Step Size: | 0.5 dB |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Switching Speed: | 100 ns Max |
|---|
| Input Power: | 20 dBm CW Max (Operating)
+27 dBm CW Max (SURVIVAL) |
|---|
| DC Voltage: | +5 VDC ± 5% @ 100 mA Max
-5 VDC ± 5% @ 100 mA Max |
|---|
| Digital Control: | 6 BIT - "1 = Insertion Loss"
"0 = Attenuation" |
|---|
| Connectors: | SMA (F) removable per MIL-C-39012 |
|---|
| Size: | 1.15" x 0.85" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -55 °C to+125 °C |
|---|
