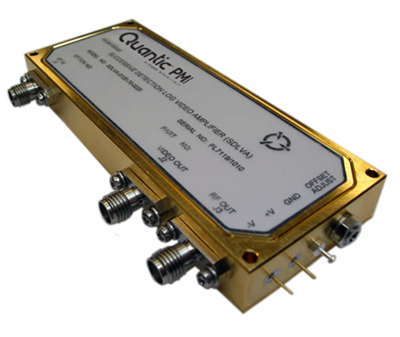

| General Parameters: |
|---|
| Type: | SDLVA |
|---|
| Status: | Active |
|---|
| Frequency Range: | 0.2 to 0.5 GHz |
|---|
| Frequency Min: | 0.2 GHz |
|---|
| Frequency Max: | 0.5 GHz |
|---|
| TSS: | -60 dBm Minimum |
|---|
| Size: | 3.75 " x 1.50 " x 0.40" |
|---|
| Log Slope: | 20 mV/dB Nominal |
|---|
| Log Range: | -60 dBm (-65 dBm TYP) |
|---|
| Log Linearity: | ±1.5dB MAX. (-65 dBm to 0 dBm), ±1.2 dB TYP, ±2.0dB MAX. (-65dBm TO +5dBm) ±1.5 dB TYP. |
|---|
| Maximum Log Range: | 0 dBm (+5 dBm TYP) |
|---|
| Rise Time: | 25 ns Maximum |
|---|
| Fall Time: | 30 ns Maximum |
|---|
| Settling Time: | 40 ns Maximum |
|---|
| Power Supply: | +12 to +15 Volts @ 100 mA, -12 to -15 Volts @ 190 mA |
|---|
| VSWR: | 2.0:1 MAX. |
|---|
| VSWR (Measured): | 2.0:1 MAX.- (1.5:1 TYP). |
|---|
| Dynamic Range: | > 65dB |
|---|
| Input Power: | +10 dBm |
|---|
| Limited IF Output: | -16 dBm |
|---|
| Log Video Output Coupling: | DC |
|---|
| Log Video Load: | 100 ohms ±10% |
|---|
| Log Slope Variation with Temperature: | ±1mV Maximum |
|---|
| Log Slope Variation with Frequency: | ±0.5 mV/dB (Over 80 MHz RF Bandwidth) |
|---|
| Log Video Maximum Output Voltage: | 2.7 v |
|---|
| Log Video Output DC Offset: | 0.1 v Nominal (Adjustable) |
|---|
| Log Video Output Slope: | 25 mV/dB Nominal |
|---|
| Log Video Propagation Delay: | 10 ns Maximum, 7 nS Typical |
|---|
| Tangential Sensitivity: | -60 dBm Minimum (-65 dBm TYP) |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +71 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +100 ºC |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
