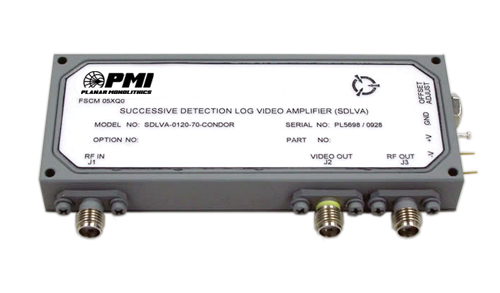

SDLVA-0120-70-CONDOR Active
Successive Detection Log Video Amplifier (SDLVA)
Additional Documents
- Product Feature
- First Article Report by Litton Amecom
- Test Report - 10/2/1997
- Test Report - 3/19/2015
- PL5740 - Unit Data
- PL5741 - Unit Data
- PL5742 - Unit Data
- PL5743 - Unit Data
- PL5744 - Unit Data
- PL5745 - Unit Data
- PL5746 - Unit Data
- PL5747 - Unit Data
- PL5748 - Unit Data
- PL5749 - Unit Data
- PL25976 - Unit Data
- PL37427 - Unit Data
- PL37428 - Unit Data
- PL39733 - Unit Data
- PL39734 - Unit Data
- PL39735 - Unit Data
- PL47094 - Unit Data
- PL47095 - Unit Data
- PL47096 - Unit Data
- PL47097 - Unit Data
- PL47098 - Unit Data
- PL47099 - Unit Data
- PL55141 - Unit Data
- PL55142 - Unit Data
PMI Model SDLVA-0120-70-CONDOR is a Successive Detection Log Video Amplifier (SDLVA) that operates from 0.75 to 2.25 GHz Frequency Range. Its Dynamic Range is 70dB (-65 to 5 dBm Typ) and a limited IF output of -6 dBm nominal. The size is 3.75” x 1.5” x 0.5” with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| CW Immune (Yes/No): | No |
| Frequency Min (GHz): | 0.75 |
| Frequency Max (GHz): | 1.25 |
| TSS (dBm): | -65 Min, -70 Typ |
| Log Slope (mV/dB): | 25 ± 5 |
| Log Range (dBm): | -60 Min, -65 Typ |
| Log Linearity: | ±2.5 dB Max @ 1 GHz |
| Rise Time: | 25 ns Max |
| Fall Time: | 30 ns Max |
| Settling Time: | 40 ns Max |
| Power Supply: | +10 to +16.5 VDC @ 200 mA Max -10 to -16.5 VDC @ 200 mA Max |
| VSWR: | 1.8:1 Max |
| VSWR (Measured): | 1.8:1 Max - Output: 2.5:1 Max |
| Video Load (Ohms): | 100 ± 10% |
| Propagation Delay: | 7 ns Typ, 10 ns Max |
| Dynamic Range: | 70 dBm Min, 75 dB Typ |
| Input Power: | 10 dBm |
| Limited IF Output: | -6 dBm Nom, ±2.5 dB Max |
| Log Video Output Coupling: | DC |
| Log Slope Variation with Temperature: | ±1 mV/dB Typ |
| Log Slope Variation with Frequency: | ±0.5 mV/dB Typ (Over 80 MHz RF Bandwidth) |
| Log Video Maximum Output Voltage: | 2.7 VDC |
| Log Video Output DC Offset: | 0.1 V Nom (Adjustable) |
| Maximum Log Voltage: | 5 dBm Min, 8 dBm Typ |
| Minimum Log Voltage: | -60 dBm Min, -65 dBm Typ |
| Connectors: | SMA Female |
| Size: | 3.75 " x 1.50 " x 0.50" |
| Finish: | Mil-Spec Epoxy Paint - Gray Mounting Surface (Bottom) Free of Paint |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +100 ºC |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
