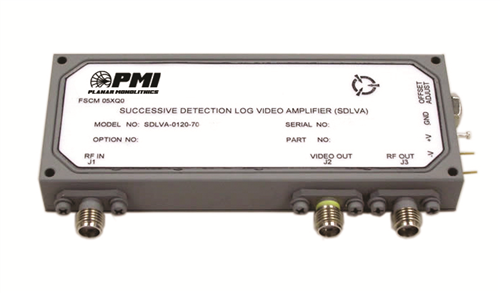

| General Parameters: |
|---|
| Status: | Active |
|---|
| CW Immune (Yes/No): | No |
|---|
| Frequency Min (GHz): | 1.4 |
|---|
| Frequency Max (GHz): | 1.6 |
|---|
| TSS (dBm): | -65 dBm Min (-70 dBm Typ) |
|---|
| Log Slope (mV/dB): | 25 |
|---|
| Log Range (dBm): | -60 (-65 Typ) to +5 (+8 Typ) |
|---|
| Log Linearity: | ±1.2 dB Max (-60 to 0 dBm)
±0.8 dB Typ, ±1.5 dB Max (-65 to +5 dBm)
±1.2 dB Typical |
|---|
| Rise Time: | 25 ns |
|---|
| Fall Time: | 30 ns |
|---|
| Settling Time: | 40 ns |
|---|
| Power Supply: | +7 to +18 V @ 100 mA (120 mA for Extended Dynamic Range)
-7 to -18 V @ 190 mA |
|---|
| VSWR: | 1.8:1 Max (1.5:1 Typ) |
|---|
| Video Load (Ohms): | 100 ± 10% |
|---|
| Propagation Delay: | 10 ns, Max, 7 ns Typ |
|---|
| Dynamic Range: | >65 dB |
|---|
| Input Power: | +10 dBm |
|---|
| Limited IF Output: | -16 dBm |
|---|
| Log Video Output Coupling: | DC |
|---|
| Log Slope Variation with Temperature: | ±1 mV Max |
|---|
| Log Slope Variation with Frequency: | ±0.5 mV/dB (Over 80 MHz RF Bandwidth) |
|---|
| Log Video Maximum Output Voltage: | 2.7 V |
|---|
| Log Video Output DC Offset: | 0.1 V Nom (Adjustable0 |
|---|
| Log Video Output Slope: | 25 mV/dB Nom (Adjustable to 30 mV/dB) |
|---|
| Size: | 3.75" x 1.50" x 0.50" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +100 ºC |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
