SDLVA-0120-70 Options 500M105, 10DBM, MH Active

Successive Detection Log Video Amplifier (SDLVA)

SDLVA-0120-70 Options 500M105, 10DBM, MH
  • SDLVA-0120-70 Options 500M105, 10DBM, MH
  • SDLVA-0120-70 Options 500M105, 10DBM, MH
Product Feature

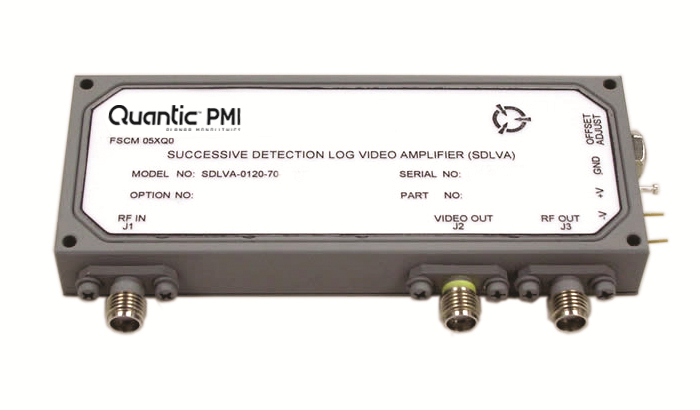

Quantic PMI Model SDLVA-0120-70 Options 500M105, 10DBM, MH is a Successive Detection Log Video Amplifier (SDLVA) that operates between the 0.5 to 1.5 GHz Frequency Range with a Dynamic Range of 70 dB Minimum and a TSS of -65 dBm. Designed using Cutting Edge GaAs Technology which provides Stunning Performance and Reliability in a Compact Package measuring 3.75" x 1.50" x 0.50" making it an Optimum Solution for High Speed Channelized Receiver Applications. This Unit offers a Maximum Fast Rise Time of ≤25 ns and a Rapid Fall Time of ≤30 ns.

Product Specifications

General Parameters:
Status: Active
CW Immune (Yes/No): No
Frequency Min (GHz): 0.5
Frequency Max (GHz): 1.5
TSS (dBm): -65
Log Slope (mV/dB): 25
Log Range (dBm): 70 Min, 75 Typ
Log Linearity: ±1.2 dB Max ( -60 to 0 dBm), ±0.8 dB Typ
±1.5 dB Max (-65 to 5 dBm), ±1.2 dB Typ
Rise Time: 25 ns
Fall Time: 30 ns
Settling Time: 40 ns
Power Supply: +7 to +18 V @ 150 mA,
-7 to -18 V @ 150 mA
VSWR: 1.8:1 Max (1.5:1 Typ)
Video Load (Ohms): 100 ± 10%
Propagation Delay: 10 ns Max, 7 ns Typ
Dynamic Range: 70 dBm Min, 75 dB Typ
Limited IF Output: +10 dBm Typ
Log Video Maximum Output Voltage: 2.7 Vol
Log Video Output DC Offset: 0.1 V Nom (Adjustable)
Tangential Sensitivity: -65 dBm (-70 dBm Typ)
Connectors: SMA Female

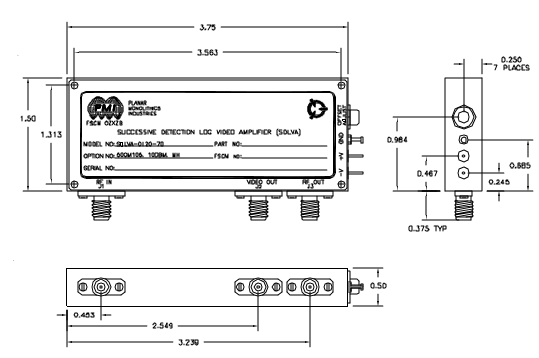

Size: 3.75" x 1.50" x 0.50"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -65 °C to +100 °C
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
