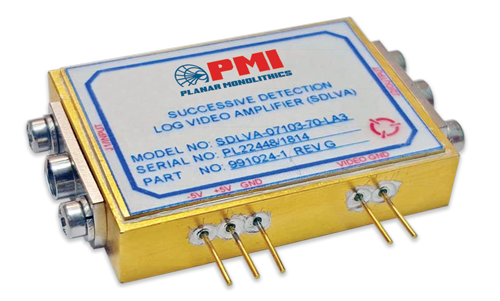

SDLVA-07103-70-LA3

Successive Detection Log Video Amplifier (SDLVA)

PMI Model No. SDLVA-07103-70-LA3 is a successive detection log video amplifier (SDLVA) that operates over the 750 MHz to 1.25 GHz frequency range. This SDLVA offers 70 dB high dynamic range (minimum) and a normal 20 MHz video bandwidth. Log linearity is ±1.5 dB from the best fit straight line over the dynamic range of -65 to +5 dBm.

Additional Product Information under, http://www.planarmonolithics.com/products/SDLVA-07103-70-LA3.htm

Product Specifications

General Parameters:
Status: Active
Frequency Range: 750 MHz to 1.25 GHz
Frequency Min: 0.75 GHz
Frequency Max: 1.25 GHz
VSWR: 2.0:1 Max
VSWR (Measured): 2.0:1 Max - Measured 1.7:1
Size: 1.30" x 0.95" x 0.27"
Log Slope: 30 mV/dB ±5%
TSS: -70 dBm Max
Logging Range: -65 dBm Max - Measured <-65 dBm
+5 dBm Min - Measured +5 dBm
Limited IF Output: 8.5 dBm Min (-65 to -60 dBm) -
Measured 8.5 dBm,
9.5 to 12.5 dBm (-60 to +5 dBm) -
Measured 10.3 to 11.3 dBm
Log Slope Variation with Temperature: ±1.5 mV/dB Max - Measured 1.3 mV/dB
Log Slope Variation with Frequency: ±0.5 mV/dB Max - Measured ±0.4 mV/dB
Tangential Sensitivity: -70 dBm Max - Measured -70 dBm
Dynamic Range: 70 dB Min - Measured 70 dB
Log Linearity: ±1.5 dB Max (-65 to +5 dBm) -
Measured +1.0/-1.49 dB (-65 to +5 dBm)
Propagation Delay: 10 ns Max, 7 ns Typ - Measured 3.32 ns
Log Video Output Coupling: DC
Log Video Maximum Output Voltage: 2.7 V - Measured 2.63 V
Log Video Output DC Offset: 0.2 V - Measured 0.223 V
Log Video Output Slope: 30 mV/dB ± 5% - Measured 31.5 mV/dB
Log Video Load: 100 Ohms Min - Measured 100 Ohms
Recovery Time: 50 ns Max (90% Input Pulse to Within 0.5 dB) - Measured 13.5 ns
Rise Time: 25 ns Max (20 ns Typ) - Measured 13.5 ns
Fall Time: 30 ns Max - Measured 13.3 ns
Settling Time: 40 ns Max (10% Input Pulse to Within 0.5 dB) - Measured 13.5 ns
Maximum DC Power: +5 V @ 250 mA Max - Measured 220 mA,
-5.2 V @ 150 mA Max - Measured 138 mA
Finish: Painted Blue
Weight: 2.75 oz
Connectors: GPO (Full Detent)
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC Operating
Non-Operating Temperature: -65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
