SDLVA-0R5G18G-50R-30DBM-10
Preliminary
Successive Detection Log Video Amplifier (SDLVA)

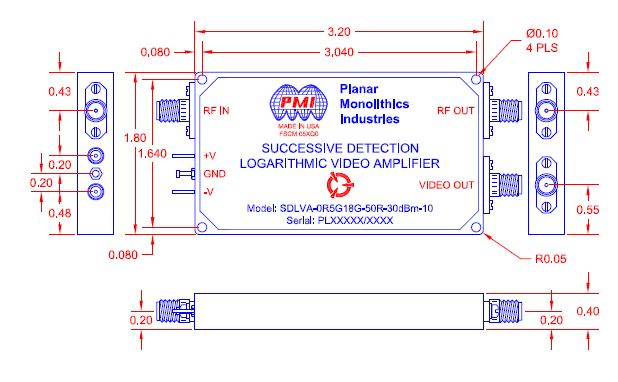

Quantic PMI Model SDLVA-0R5G18G-50R-30DBM-10 is an Successive Detection Log Video Amplifier (SDLVA) designed to operate over the 0.5 to 18 GHz frequency range. This model is designed for ultra high speed applications while maintaining flatness and accuracy. Housing size is 3.2" x 1.8" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| CW Immune (Yes/No): | No |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| TSS (dBm): | -71 Min |
|---|
| Log Slope (mV/dB): | 10 (±10%) @ 50 Ohm Load |
|---|
| Log Range (dBm): | -70 to 0 |
|---|
| Rise Time: | 20 ns Max |
|---|
| Power Supply: | +12 to 15 VDC @ 400 mA Max
-12 to 15 VDC @ 150 mA Max |
|---|
| VSWR: | 2.5:1 Max |
|---|
| Pulse Range: | 50 ns to CW |
|---|
| Dynamic Range: | -70 to 0 dBm |
|---|
| Input Power: | +30 dBm CW Max |
|---|
| Log Slope Intercept Point: | TBD |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 3.2" x 1.8" x 0.4" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
