| General Parameters: |
|---|

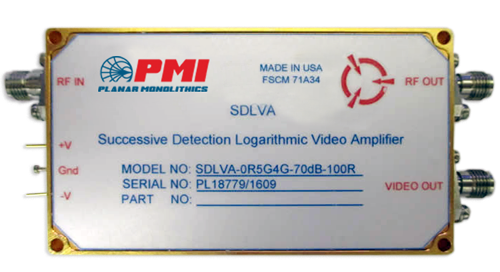

| Type: | SDLVA |
|---|
| Status: | Active |
|---|
| Frequency Range: | 0.5 to 4 GHz |
|---|
| Frequency Min: | 0.5 GHz |
|---|
| Frequency Max: | 4 GHz |
|---|
| TSS: | -73 dB Typ, -71 dB Max - Measured -73 dBm |
|---|
| Size: | 3.2" x 1.8" x 0.4 |
|---|
| Log Slope: | 25 mV/dB Typ 100 Ohm Load |
|---|
| Log Range: | -70 to 0 dBm |
|---|
| Log Linearity: | ±2.5 dB (-40 °C- +75 °C) - Measured ±1.2 dB |
|---|
| Rise Time: | 10 ns (5 ns Typ) - Measured 9.1 ns |
|---|
| Recovery Time: | 60 ns (40 ns Typ) - Measured 55 ns |
|---|
| Power Supply: | +15 V or +12 V @ 350 mA Nom - Measured 271 mA
-15 V or -12 V @ 180 mA Nom - Measured 93 mA |
|---|
| Finish: | Gold Plated |
|---|
| Frequency Flatness: | ±2 dB Max - Measured ± 1.2 dB |
|---|
| VSWR: | 2.0:1 Max |
|---|
| VSWR (Measured): | 2.0:1 Max (RF In- RF Out) |
|---|
| PSAT: | +13 dBm Typ |
|---|
| Pulse Range: | 30 ns to CW |
|---|
| DC Offset: | 50 ±50 mV |
|---|
| Dynamic Range: | -70 to 0 dBm |
|---|
| Input Power: | +17 dBm CW Max |
|---|
| RF Gain: | 55 dB Typ |
|---|
| Connectors: | SMA (F) |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +75 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Fungus: | MIL-STD-810C, Method 508.2 |
|---|
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
|---|
