SDLVA-0R61R1-65-CD-SFF-2 Active
Successive Detection Logarithmic Video Amplifier (SDLVA)

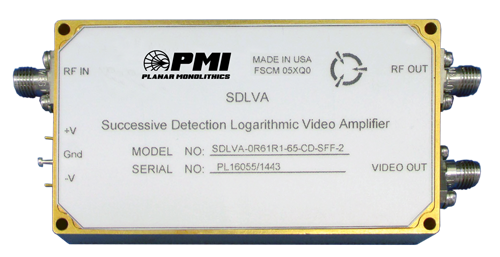

PMI Model SDLVA-0R61R1-65-CD-SFF-2 is a Successive Detection Logarithmic Video Amplifier (SDLVA) designed to operate over the 0.6 to 1.1 GHz frequency range. This model offers a limited RF output of 0 to +5 dBm with an input of -60 dBm. This model is designed for ultra high speed applications while maintaining flatness and accuracy. Housing size is 3.2" x 1.8" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| CW Immune (Yes/No): | No |
| Frequency Min (GHz): | 0.6 |
| Frequency Max (GHz): | 1.1 |
| TSS (dBm): | -68 Max |
| Log Slope (mV/dB): | 30 Typ, ±1.5 Max (100 Ohm Load) |
| Log Range (dBm): | -65 to 0 |
| Log Linearity: | ±1.2 dB (+25 °C), ±2 dB (-20 to +70 ºC) |
| Rise Time: | 30 ns Max |
| Fall Time: | 40 ns Max |
| Recovery Time: | 80 ns Max |
| Power Supply: | +15 or +12 VDC @ 300 mA Max, -15 or -12 VDC @ 200 mA Max |
| VSWR: | 2.0:1 |
| Video Load (Ohms): | 100 |
| Pulse Range: | 30 ns to CW |
| DC Offset: | 100 mV Typ |
| Dynamic Range: | -65 to 0 dBm |
| Input Power: | 13 dBm CW Max |
| Limited IF Output: | 0 to 5 dBm @ -60 dBm Input |
| Connectors: | SMA Female |
| Size: | 3.2" x 1.8" x 0.4" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -20 ºC to +70 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
