SDLVA-0R61R1-65-CD-SFF-3 Active

Successive Detection Logarithmic Video Amplifier (SDLVA)

SDLVA-0R61R1-65-CD-SFF-3

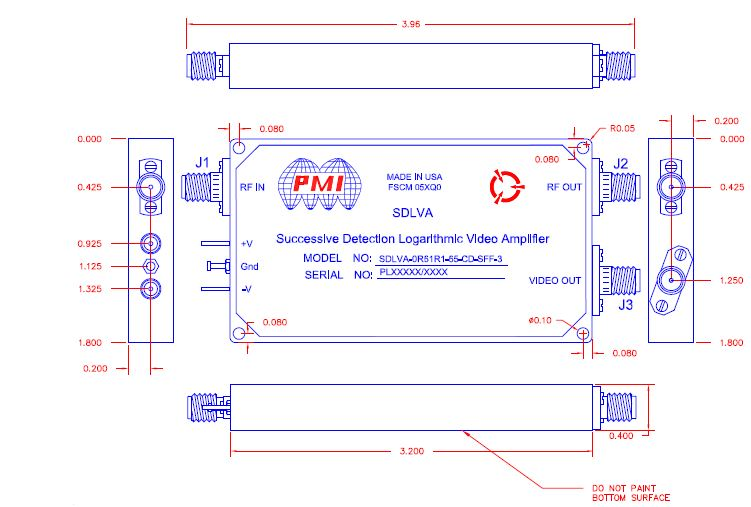

Quantic PMI Model SDLVA-0R61R1-65-CD-SFF-3 is a Successive Detection Logarithmic Video Amplifier (SDLVA) designed to operate over the 0.6 to 1.1 GHz frequency range. This model offers a limited RF output of 0 to +5 dBm with an input of -60 dBm. This model is designed Package size is for ultra-high speed applications while maintaining flatness and accuracy. Package size is 3.2" x 1.8" x 0.4" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
CW Immune (Yes/No): No
Frequency Min (GHz): 0.6
Frequency Max (GHz): 1.1
TSS (dBm): -68 Max
Log Slope (mV/dB): 30 Typ, ± 1.5 Max, 100 Ohm Load
Log Range (dBm): -65 to 0
Log Linearity: ±1.2 dB (+25 °C)
±2.0 dB (-20 to +70 °C)
Rise Time: 30 ns Max
Fall Time: 40 ns Max
Recovery Time: 80 ns Max
Power Supply: +12 V @ 300 mA Max
-12 V @ 200 mA Max
VSWR: 2.0:1
Pulse Range: 30 ns to CW
DC Offset: 100 mV Typ
Dynamic Range: -65 to 0 dBm
Limiting Output Level: 0 to +5 dBm @ -60 dBm Input
Power Input: +13 dBm CW Max
Connectors: SMA (F)
Size: 3.2" x 1.8" x 0.4"
Finish: Gold Alodine on Bottom Surface and Black Epoxy on the Remaining Surfaces
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -20 °C to +70 °C
Non-Operating Temperature: -55 °C to +125 °C
Temperature Cycle: MIL-STD-202F, Method 107
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
