SDLVA-0R91R3-70-CD-RF Preliminary

Successive Detection Video Log Amplifier (SDLVA)

SDLVA-0R91R3-70-CD-RF
Product Feature

Quantic PMI Model SDLVA-0R91R3-70-CD-RF is a 0.9 to 1.3 GHz Successive Detection Video Log Amplifier (SDLVA) with limited IF output. It has a dynamic range of 70 dB, a log slope of 50 mV/dB, and a video bandwidth of 14 MHz. Designed using cutting edge GaAs technology which provides stunning performance and reliability in a compact package measuring 3.75" x 1.50" x 0.50" making it an optimum solution for high speed channelized receiver applications.

Product Specifications

General Parameters:
Status: Preliminary
CW Immune (Yes/No): No
Frequency Min (GHz): 0.9
Frequency Max (GHz): 1.3
TSS (dBm): -82 Typ
Log Slope (mV/dB): 50 Nom
Log Range (dBm): -80 to -5
Log Linearity: ±1.0 dB Max
Rise Time: 25 ns Max
Fall Time: 200 ns Max
Recovery Time: 200 ns Max
Settling Time: 60 ns Max
Power Supply: ±12 to ±15 V
Frequency Flatness: ±1.25 dB Max @ 25 ºC
VSWR: 2.0:1 Max
Video Load (Ohms): 50
Dynamic Range: -80 to -5 dBm
Log Accuracy: ±1.5 dB Max @ 25ºC
Input Power: +10 dBm CW
Limited IF Output: +5 dBm Typ
Log Video Output Coupling: DC
Tangential Sensitivity: -82 dBm Typ
Connectors: SMA female - removable

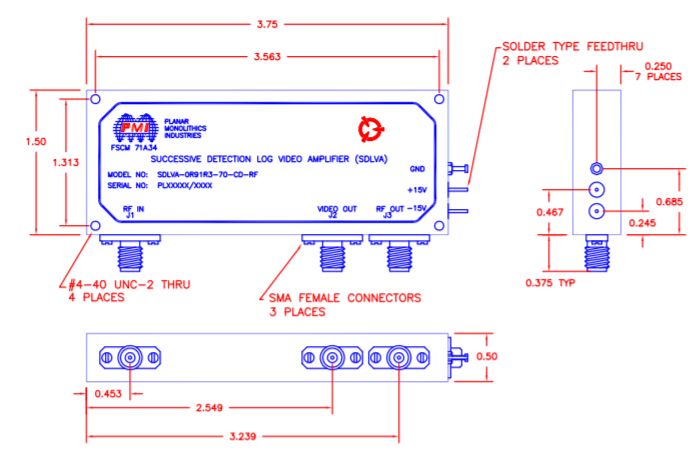

Size: 3.75" x 1.50" x 0.50"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC Operating
Non-Operating Temperature: -65 ºC to +100 ºC Non-Operating
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
