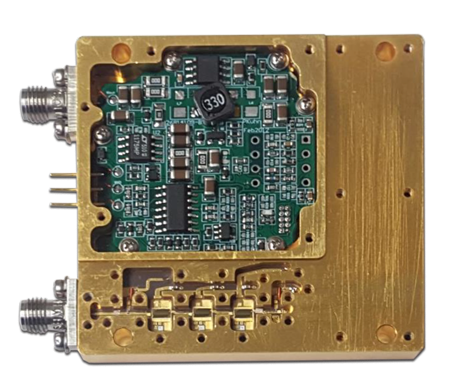

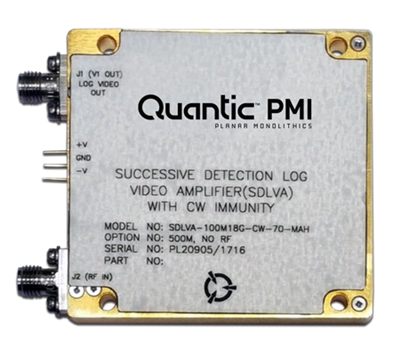

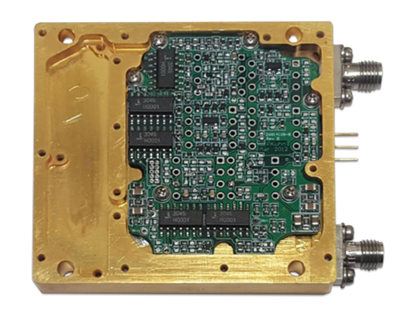

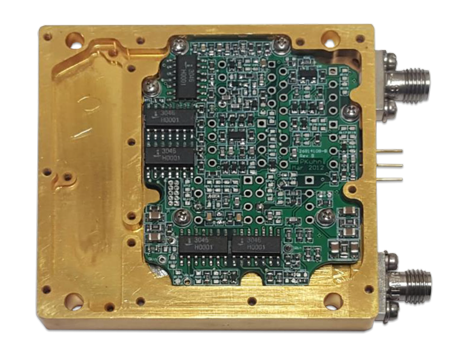

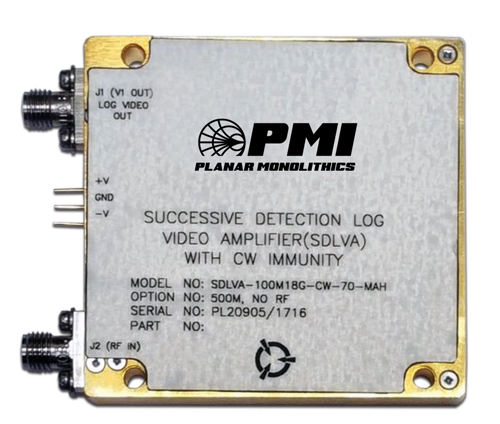

| General Parameters: |
|---|
| Status: | Active |
|---|
| CW Immune (Yes/No): | Yes |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| TSS (dBm): | -68 Min, -70 Typ |
|---|
| Log Slope (mV/dB): | 10 into a 50 Ohm load |
|---|
| Log Range (dBm): | -65 to +5 |
|---|
| Log Linearity: | ±1.75 dB (-40 to 85 ºC) Max - Measured ±1.5 dB |
|---|
| Rise Time: | 35 ns Max - Measured 27 ns |
|---|
| Recovery Time: | 350 ns Max - Measured 275 ns |
|---|
| Settling Time: | 50 ns Typ - Measured < 50 ns |
|---|
| Power Supply: | ±12 to ±15 VDC - Measured +12 V @ 120 mA,
-12 V @ 66 mA |
|---|
| Frequency Flatness: | ±2.0 dB Max - Measured ±1.7 dB |
|---|
| VSWR: | 2.0:1 Max |
|---|
| VSWR (Measured): | 2.0:1 Max - Measured 1.5:1 |
|---|
| Video Load (Ohms): | 50 |
|---|
| Pulse Range: | 100 ns to 250 µs |
|---|
| Dynamic Range: | -65 to +5 dBm Min |
|---|
| Connectors: | SMA (F) |
|---|
| Size: | 2.3" x 2.2" x 0.36" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC
* Operating down to -54 ºC with Degraded Specifications |
|---|
| Non-Operating Temperature: | -54 ºC to +100 ºC |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
