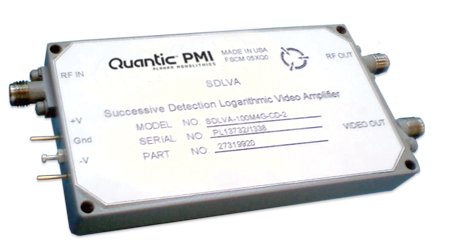

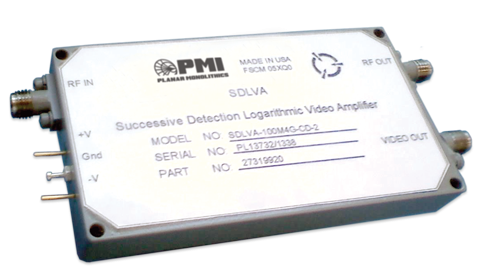

| General Parameters: |
|---|
| Status: | Active |
|---|
| CW Immune (Yes/No): | No |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 4 |
|---|
| TSS (dBm): | -73 Typ, -71 Max |
|---|
| TSS (Measured): | -73 dB Typ, -71 dB Max -
Measured -73.2 dBm |
|---|
| Log Slope (mV/dB): | 25 Typ, 50 ohm load |
|---|
| Log Range (dBm): | -70 to 0 |
|---|
| Log Linearity: | ±2.5 dB (-40 to +75 ºC) |
|---|
| Rise Time: | 30 ns Max - Measured 25.1 ns |
|---|
| Fall Time: | 50 ns Typ |
|---|
| Recovery Time: | 500 ns Max - Measured 187 ns |
|---|
| Power Supply: | +15 or +12 V @ 350 mA Nom - Measured +15 V @ 190 mA
-15 or -12 V @ 180 mA Nom - Measured -15 V @ 90 mA |
|---|
| VSWR: | 2.0:1 |
|---|
| VSWR (Measured): | 2.0:1 - Measured 1.51:1 |
|---|
| Video Load (Ohms): | 50 |
|---|
| PSAT: | +13 dBm Typ - Measured +10.17 dBm |
|---|
| Pulse Range: | 100 ns to CW |
|---|
| DC Offset: | 50 ± 50 mV - Measured 58 mV |
|---|
| Dynamic Range: | -70 to 0 dBm |
|---|
| Harmonics: | 15 dBc Min (-70 to 0 dBm J1 Input)
(Excluding Odd Harmonics) |
|---|
| Input Power: | +17 dBm CW Max |
|---|
| RF Gain: | 55 dB Typ - Measured 51 dB |
|---|
| Video Flatness Over Frequency: | ±50 mV Max - Measured ±35 mV |
|---|
| Connectors: | SMA (F) |
|---|
| Size: | 3.2" x 1.8" x 0.4" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +75 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Fungus: | MIL-STD-810C, Method 508.2 |
|---|
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
|---|
