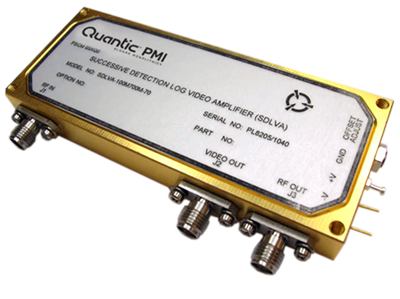

| General Parameters: |
|---|
| Status: | Active |
|---|
| CW Immune (Yes/No): | No |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 0.7 |
|---|
| TSS (dBm): | -60 Typ |
|---|
| Log Slope (mV/dB): | 25 ± 5 |
|---|
| Log Range (dBm): | -60 to +10 |
|---|
| Log Linearity: | ±1.2 dB Typ, ±1.2 dB Max @ (-55 to 0 dBm),
±1.5 dB Typ, ±2.0 dB Max @ (-60 to 0 dBm)
Measured ±0.49 dB |
|---|
| Rise Time: | 15 ns Typ, 25 ns Max |
|---|
| Fall Time: | 15 ns Typ, 30 ns Max |
|---|
| Settling Time: | 40 ns Max |
|---|
| Power Supply: | +12 to +12 V @ 100 mA - Measured 62 mA,
-12 to -15 V @ 200 mA - Measured 140 mA
Note: Do not supply +V without -V supplied as well as this may damage the unit |
|---|
| VSWR: | 2.0:1 Max |
|---|
| VSWR (Measured): | 2.0:1 Max (1.5:1 Typ) - Measured <1.03:1 |
|---|
| Video Load (Ohms): | 100 ± 10% |
|---|
| Dynamic Range: | 55 dB Min, 60 dB Typ |
|---|
| Input Power: | +10 dBm |
|---|
| Limited IF Output: | -10 dBm Min, -5 dBm Typ - Measured -5.64 dBm, -3.91 dBm |
|---|
| Log Video Output Coupling: | DC |
|---|
| Log Slope Variation with Temperature: | ±1 mV/dB Typ |
|---|
| Log Slope Variation with Frequency: | ±0.5 mV/dB Typ (Over 80 MHz RF Bandwidth) |
|---|
| Log Video Maximum Output Voltage: | 2.7 V |
|---|
| Log Video Output DC Offset: | 0.1 V Nom (Adjustable) |
|---|
| Log Video Output Slope: | 25 ±5 mV/dB - Measured 25.85 mV/dB |
|---|
| Log Video Propagation Delay: | 10 ns Max, 7 ns Typ |
|---|
| Maximum Log Voltage: | 0 dBm (+10 dBm Typ) |
|---|
| Minimum Log Voltage: | -55 dBm (-60 dBm Typ) |
|---|
| Tangential Sensitivity: | -60 dBm Typ (Video In) |
|---|
| Connectors: | SMA (F) |
|---|
| Size: | 3.75 " x 1.50 " x 0.50" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +100 ºC |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
