SDLVA-1G20G-55-12-SFF-100OHM Preliminary

Miniature Successive Detection Log Video Amplifier (SDLVA)

SDLVA-1G20G-55-12-SFF-100OHM
Product Feature

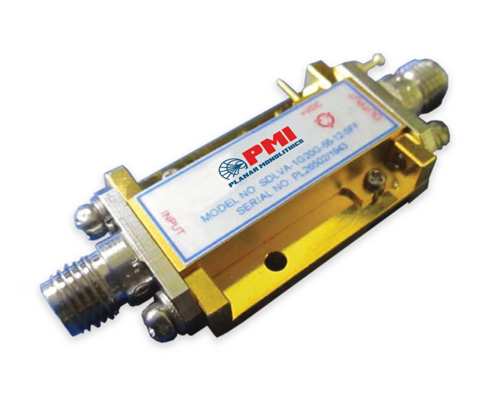

PMI Model SDLVA-1G20G-55-12-SFF-100OHM is a miniature Successive Detection Log Video Amplifier (SDLVA) supplied in our standard PE2 housing that can be used in connectorized or strip line applications. It operates from 1 to 20 GHz frequency range, greater than 55 dB dynamic range, and ultra high speed. Its size and stunning performance makes it an attractive solution for high speed, wide band and reliability channelized receiver applications.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 1 to 20
Frequency Min (GHz): 1
Frequency Max (GHz): 20
Logging Range (dBm): -55 to +5 dBm
Video Load (Ohms): 100
TSS (dBm): -58 dBm Typ
Log Slope (mV/dB): 50 dBm Typ
Log Linearity: ±1.5 dB (Pin = -50 to 0 dBm) @ +25 °C Typ
Input VSWR: 2.8:1 Typ
Log Video Output Slope: 50 mV/dB Typ
Log Video Output Voltage: 0.1 to 2.5 V Typ
Tangential Sensitivity: -58 dBm
Frequency Flatness: ±2 dB Typ
Log Linearity Over Temp: ±2 dB (Pin = -50 to 0 dBm) @ -55 to +85 °C Typ
Log Video Output Rise Time: 5 ns Typ (Pin = -20 dBm @ 10% to 90%)
Log Video Output Fall Time: 20 ns Typ (Pin = -20 dBm @ 90% to 10%)
Log Video Recovery Time: 28 ns Typ (Pin = -50 to 0 dBm)
Log Video Propagation Delay: 15 ns Typ
Video Output Load: 100 Ohm
Operating Voltage: +8 to +15 VDC
Operating Current: 130 mA Typ
Connectors: SMA Female - removable
Size: 1.08” x 0.71” x 0.29”
Housing: PE2
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -55 °C to +85 °C
Non-Operating: -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
