SDLVA-1G20G-55-12-SFF-100OHM-ROHS Active

Miniature Successive Detection Log Video Amplifier (SDLVA)

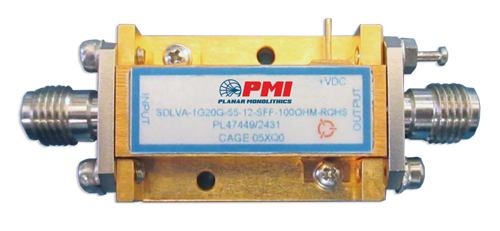

SDLVA-1G20G-55-12-SFF-100OHM-ROHS
  • SDLVA-1G20G-55-12-SFF-100OHM-ROHS
  • SDLVA-1G20G-55-12-SFF-100OHM-ROHS
Product Feature

Quantic PMI Model SDLVA-1G20G-55-12-SFF-100OHM-ROHS is a Miniature Successive Detection Log Video Amplifier (SDLVA) supplied in our standard PE2 housing that can be used in connectorized or strip line applications that operates from 1 to 20 GHz frequency range, greater than 55 dB dynamic range, and ultra-high speed. Its size and stunning performance makes it an attractive solution for high speed, wide band and reliability channelized receiver applications. Dual use component can be used as a surface mount or connectorized.  RoHS compliant.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 20 GHz
Frequency Min (GHz): 1
Frequency Max (GHz): 20
Logging Range (dBm): -55 to +5
Video Load (Ohms): 100
TSS (dBm): -58 Typ
Log Slope (mV/dB): 50 Typ
Log Linearity: ±1.5 dB (Pin = -50 to 0 dBm) @ +25°C Typ
Input VSWR: 2.8:1 Typ
Log Video Output Slope: 50 mV/dB Typ
Log Video Output Voltage: 0.1 to 2.5 V Typ
Tangential Sensitivity: -58 dBm
Frequency Flatness: ±2.0 dB Typ
Log Linearity Over Temp: ±2.0 dB (Pin = -50 to 0 dBm) @ -55 to +85 °C Typ
Log Video Output Rise Time: 5 ns Typ (Pin = -20 dBm @ 10% to 90%)
Log Video Output Fall Time: 20 ns Typ (Pin = -20 dBm @ 90% to 10%)
Log Video Recovery Time: 28 ns Typ (Pin = -50 to 0 dBm)
Log Video Propagation Delay: 15 ns Typ
Video Output Load: 100 Ohm
Operating Voltage: +8 to +15 VDC
Operating Current: 130 mA Typ
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -55 °C to +85 °C
Non-Operating: -65 °C to +125°C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
