SDLVA-1G20G-58-12-SFF

Successive Detection Log Video Amplifier

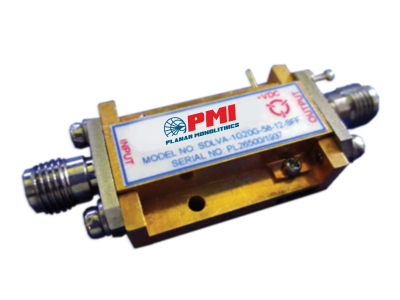

PMI Model No. SDLVA-1G20G-58-12-SFF is a 1.0 to 20.0 GHz SDLVA.  Excellent performance is packed into this ultra-small package. Its ultra-wide frequency range and 59 dB dynamic range makes this part suitable for a multitude of applications. A key feature is its low power consumption of 1.2 W and a single operating voltage of +12 V. Supplied in PMI standard PE2 housing (1.08" x 0.71" x 0.29") that can be used as a SMA connectorized or surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 1.0 to 20.0 GHz
Frequency Min: 1 GHz
Frequency Max: 20 GHz
VSWR: 2.2:1
Size: 1.08" x 0.71" x 0.29"
Log Slope: 14 mV/dB Typ
TSS: -60 dBm Typ
Logging Range: -54 to +5 dBm
Frequency Flatness: ±2.0 dB
Dynamic Range: 60 dB
Log Linearity: ±1.0 dB (Pin = -30 dBm)
Log Video Maximum Output Voltage: 0.9 to 1.5 V
Log Video Output Slope: 14 mV/dB
Log Video Propagation Delay: 15 ns
Recovery Time: 28 ns (Pin = -50 to 0 dBm)
Rise Time: 5 ns (Pin = -20 dBm @ 10% to 90%)
Fall Time: 20 ns (Pin = -20 dBm @ 90% to 10%)
Power Supply: +12 to +15 VDC @ 85 mA Typ
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
