Miniature Successive Detection Log Video Amplifier (SDLVA)
PMI Model SDLVA-1G23G-54-SFF is a miniature Successive Detection Log Video Amplifier (SDLVA) supplied in our standard PE2 housing that can be used in connectorized or strip line applications that operates from 1 to 23 GHz featuring 54 dB dynamic range, 15 dBm power handling, and a 15 mV/dB output slope. Unit size and stunning performance makes it an attractive solution for high speed, wide band, and high reliability channelized receiver applications.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 1 to 23 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 23 |
| Dynamic Range: | 54 dB Typ |
| Maximum RF Input Power: | 15 dBm |
| Log Video Output Slope: | 15 mV/dB Typ |
| Log Video Output Voltage: | 0.9 to 1.8 V |
| Log Video Rise Time: | 5 ns Typ @ 10 GHz |
| Log Video Fall Time: | 7 ns Typ @ 10 GHz |
| DC Power: | 12 VDC @ 100 mA Typ |
| Log Linearity Over Temp: | ±1.5 dB Typ (-40 to +85 °C) |
| Connectors: | SMA Female - removable |

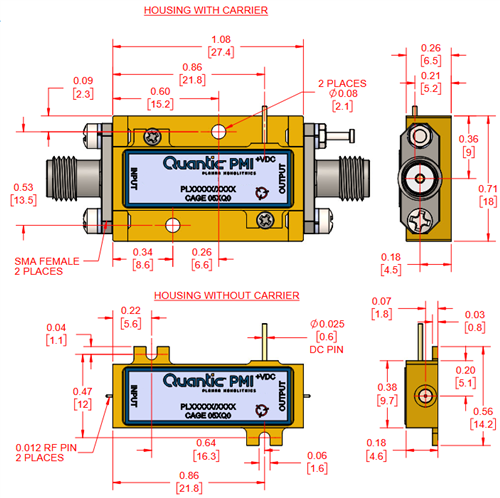

| Size: | 1.08” x 0.71” x 0.29” |
| Housing: | PE2 |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 °C to +85 °C (Operating) -55 °C to +125 °C (Storage) |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
