SDLVA-1G40G-49dB Preliminary

Successive Detection Log Video Amplifier (SDLVA)

Product Feature

Quantic PMI Model SDLVA-1G40G-49dB is a Successive Detection Log Video Amplifier (SDLVA) that operates over the 1 to 40 GHz frequency range. It has a dynamic range of 49 dB and a log slope of 50 mV/dB. Furthermore, it has been designed using cutting edge GaAs technology which provides stunning performance and reliability in a compact package making it an optimum solution for high speed channelized receiver applications.

Product Specifications

General Parameters:
Type: SDLVA
Status: Preliminary
Frequency Range: 1 to 40 GHz
Frequency Min: 1 GHz
Frequency Max: 40 GHz
TSS: -52 dBm

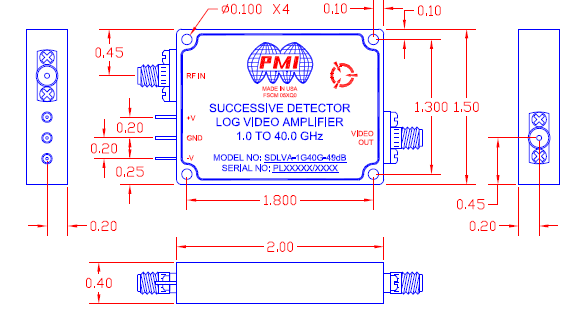

Size: 2.0" x 1.5" x 0.4"
Log Slope: 50 mV/dB
Log Range: -47 to +2 dBm
Log Linearity: ±1.0 dB Max @ 25 °C
Rise Time: 25 ns Max
Recovery Time: 500 ns Max
Power Supply: +12 to +15 V @ 170 mA Max,
-12 to -15 V @ 70 mA Max
Finish: Painted Blue
Frequency Flatness: ±2.5 dB Max from 1 to 40 GHz
VSWR: 2.5:1 Max
Dynamic Range: -47 to +2 dBm
Input Power: -47 dBm to +2 dBm
Connectors: 2.92mm (F)
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
