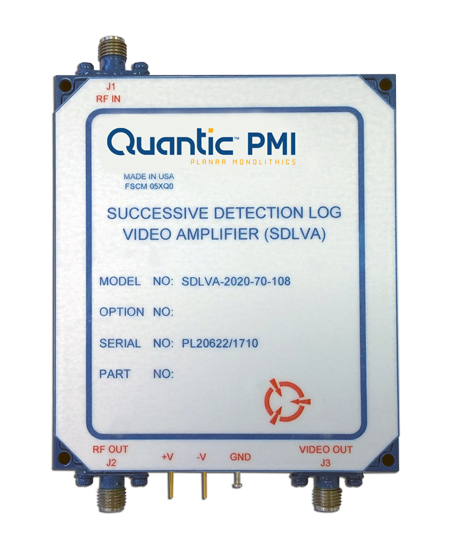

| General Parameters: |
|---|
| Status: | Active |
|---|
| CW Immune (Yes/No): | No |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 8 |
|---|
| TSS (dBm): | -65 Min |
|---|
| TSS (Measured): | -65 dBm Min - Measured -66 dBm |
|---|
| Output Voltage: | 1.00 VDC Max - Measured <1.0 VDC |
|---|
| Log Slope (mV/dB): | 10 ± 10% |
|---|
| Log Range (dBm): | -65 to +10 |
|---|
| Log Linearity: | ±1.75 dB Max (-65 to 10 dBm) -
Measured ±1.01 dB |
|---|
| Rise Time: | 30 ns Max - Measured 13.5 ns |
|---|
| Recovery Time: | 250 ns Max, 150 ns Typ - Measured 38 ns |
|---|
| Power Supply: | +15 V @ 650 mA Max - Measured 540 mA,
-15 V @ 175 mA Max - Measured 94 mA |
|---|
| Frequency Flatness: | ±2.5 dB Max - Measured ±0.8 dB |
|---|
| VSWR: | 2.0:1 Max |
|---|
| VSWR (Measured): | 2.0:1 Max (@ -20 dBm) - Measured 1.74:1 |
|---|
| Video Load (Ohms): | 50 ± 10% |
|---|
| Log Temperature Stability: | ±1.75 dB (0 to 60 °C) - Measured ±1.01 dB |
|---|
| DC Offset: | ±5 % Max - Measured <5 % |
|---|
| Dynamic Range: | -65 to +10 dBm |
|---|
| Output Stability: | ±2.5 dB Max (0 to 60 °C) - Measured <±2.5 dB |
|---|
| Limited IF Output: | 0 dBm Min - Measured 14.49 dB |
|---|
| Connectors: | SMA (F) |
|---|
| Size: | 3.50" x 3.00" x 0.50" |
|---|
| Finish: | Painted Blue - Bottom Unpainted |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC Operating |
|---|
| Non-Operating Temperature: | -65 ºC to +100 ºC Non-Operating |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
