| General Parameters: |
|---|
| Status: | Active |
|---|
| CW Immune (Yes/No): | No |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| TSS (dBm): | -64 Min |
|---|
| Log Slope (mV/dB): | 20 ± 10% |
|---|
| Log Range (dBm): | -60 to 0 |
|---|
| Log Linearity: | ±1.75 dB Max (-60 to 0 dBm) |
|---|
| Rise Time: | 30 ns Max |
|---|
| Recovery Time: | 250 ns Max, 150 ns Typ (-60 to 0 dBm) |
|---|
| Power Supply: | +15V @ 600 mA Max,
-15V @ 200 mA Max |
|---|
| Frequency Flatness: | ±2.5 dB |
|---|
| VSWR: | 3.0:1 (@ -20 dBm) |
|---|
| VSWR (Measured): | 3.0:1 (@ -20 dBm) |
|---|
| Video Load (Ohms): | 100 ± 10% |
|---|
| Log Temperature Stability: | ±1.75 dB (0 to 60 °C) |
|---|
| Dynamic Range: | 70 dBm Min, 75 dB Typ |
|---|
| Limited IF Output: | +10 dBm ±2.5 dB |
|---|
| Connectors: | SMA (F) |
|---|

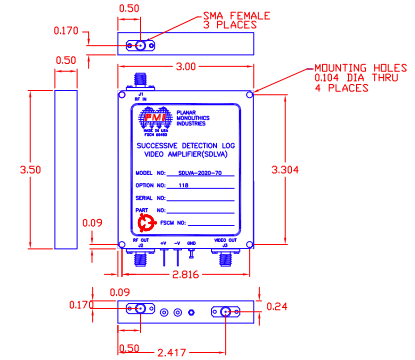

| Size: | 3.00" x 3.50" x 0.50" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +100 ºC |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
