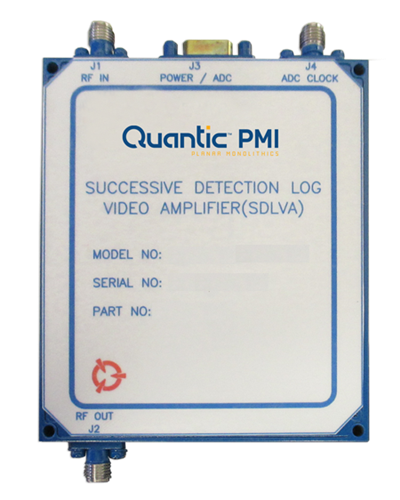

SDLVA-2020-OPT118 Preliminary
DC Coupled Successive Detection Log Video Amplifier (SLDVA)
PMI model SDLVA-2020-OPT118 is a truly DC Coupled Successive Detection Log Video Amplifier (SLDVA) that has 40 dB dynamic range over the frequency range of 1 to 18 GHz and provides an 8-Bit Digital Log Video Output. The unit employs planar diode detectors and integrated video circuitry for high-speed performance and outstanding reliability. The DLVAs are of superior construction using state of the art MIC technology. The size is 3.0" x 3.5" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| CW Immune (Yes/No): | No |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 18 |
| TSS (dBm): | -65 Max |
| Log Slope (mV/dB): | 5 LSB/dB Nom |
| Log Range (dBm): | -65 to -35 |
| Log Linearity: | ±1.75 dB Max (-65 to -35 dBm) |
| Rise Time: | 20 ns Max |
| Recovery Time: | 200 ns Max |
| Power Supply: | +12 V @ 700 mA Max -12V @ 200 mA Max |
| Frequency Flatness: | ±2.0 dB Typ ±2.5 dB Max |
| VSWR: | 3.0:1 Max |
| Log Temperature Stability: | ±1.75 dB (0 to 60 °C) |
| Dynamic Range: | 40 dB |
| Limited IF Output: | +10 dBm ±2.5 dB Typ |
| Power/ Logic Connector: | 15 Pin Micro-D Male |
| Connectors: | SMA (F) |
| Size: | 3.5" x 3.0" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -54 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +100 ºC |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
