SDLVA-212-65-16MV-12DBM Active

Successive Detection Log Video Amplifier (SDLVA)

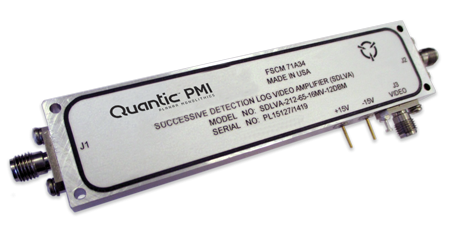

SDLVA-212-65-16MV-12DBM
Product Feature

Quantic PMI Model SDLVA-212-65-16MV-12DBM is a successive detection log video amplifier (SDLVA) that operates between the 2 to 12.5 GHz frequency range and has a dynamic range of 65 dB, a log slope of 16.7 mV/dB and a nominal video bandwidth of 0.05 GHz.  Designed using cutting-edge GaAs technology which provides stunning performance and reliability in a compact package measuring 3.5" x 3.2" x 0.5" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
CW Immune (Yes/No): No
Frequency Min (GHz): 2
Frequency Max (GHz): 12.5
TSS (dBm): -64 Max
Log Slope (mV/dB): 16.7 ± 1.3
Log Range (dBm): -55 to +10
Rise Time: 10 ns Max
Fall Time: 12 ns Max
Recovery Time: 30 ns Max
Power Supply: +15 V @ 800 mA,
-15 V @ 200 mA
VSWR: 2.0:1 Max
Video Log Linearity: ±1.8 dB
Video Log Slope (mV/dB): 16.7 ± 1.3 mV/dB
Video Freq Flatness: ±3 dB Max
Video Load (Ohms): 35 Nom
Pulse Range: 25 ns to CW
Dynamic Range: -55 to +10 dBm
Input Power: +20 dBm
Delay Time: <2 ns
Input Impedance: 50 Ohm
Connectors: SMA Female
Size: 4.24" x 0.994" x 0.38"
Finish: Nickel Place per MIL-C-26074
Weight: 3 oz Max
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: 0 ºC to +85 ºC
Non-Operating Temperature: -62 ºC to +86 ºC
Humidity: 95% (Continuous and Intermittent)
Shock: MIL-S-901 Grade A Class 1 Type B
Vibration: MIL-STD-167-1 Type 1 (4-50Hz)
