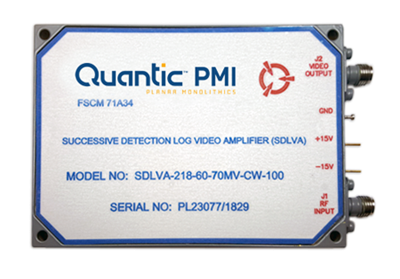

| General Parameters: |
|---|
| Status: | Active |
|---|
| CW Immune (Yes/No): | Yes |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| TSS (dBm): | -66 |
|---|
| Log Slope (mV/dB): | 70 Nom |
|---|
| Log Range (dBm): | -60 to 0 |
|---|
| Log Linearity: | ±1.5 dB Max |
|---|
| Recovery Time: | 500 ns Max |
|---|
| Settling Time: | 55 ns Max, 90% Output to ±0.5 dB of Final Value |
|---|
| Power Supply: | +15 VDC @ 400 mA Max
-15 VDC @ 150 mA Max |
|---|
| Dynamic Range Log: | -60 to 0 dBm |
|---|
| Cooling: | Conduction Cooling at Mounting Surface |
|---|
| Frequency Flatness: | ±2.0 dB Typ |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Video Load (Ohms): | 100 |
|---|
| DC Offset: | ±150 mV Typ |
|---|
| Dynamic Range: | -60 to 0 dBm |
|---|
| Max Input Level: | +20 dBm CW |
|---|
| Signal Capability: | Pulse (100 ns to 300 µs), -30 dBm or Higher Pulse on CW |
|---|
| Input VSWR: | 2.0:1 Max |
|---|
| Output Rise Time: | 25 ns Max |
|---|
| Pulse Peak Amplitude Loss: | CW Level: -50 dBm: No Loss, -40 dBm: 2.0 dB Max |
|---|
| Size: | 3.5" x 2.5" x 0.5" |
|---|
| Finish: | Painted Gray
Mounting Surface Free of Paint |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -20 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 Cond. A |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
